Choosing the wrong vacuum chamber material can derail your entire project. It leads to leaks, contamination, and costly failures, but a little knowledge makes the decision easy.
The best material depends on your vacuum level and application. Stainless steel is the top choice for high vacuum and purity. Aluminum is a good, lighter alternative for many systems. Acrylic is only for low vacuum applications where you need to see inside.
Choosing a vacuum chamber isn't just a simple purchase. It's a foundational decision that impacts the performance, reliability, and safety of your entire vacuum system. In my 10 years in this industry, I've seen firsthand how the right material choice leads to success, while the wrong one leads to endless troubleshooting. It’s about more than just holding a vacuum; it’s about outgassing, durability, and suitability for your specific task. Let’s break down the options so you can choose with confidence.
What is the best material for a vacuum chamber?
Are you feeling overwhelmed by the material choices for your chamber? Picking the wrong one means wasting time, money, and getting poor results. Let's compare the top three materials directly.
There is no single "best" material for every situation. The ideal choice is a balance between your required vacuum level, application, budget, and other needs like transparency or weight. Each material has distinct advantages and disadvantages.
When I help customers source equipment, the first question is always about the application. The answer dictates the material. You need to think about a few key properties before you decide.
Key Properties to Consider
The main factors are the ultimate pressure you need to reach, how clean the process must be, and your budget. Outgassing—the release of trapped gases from the material's surface—is a critical factor. High outgassing makes it difficult or impossible to reach high vacuum levels. Strength is also vital, as the chamber must withstand over 14 pounds per square inch of atmospheric pressure trying to crush it.
Material Breakdown
To make it simple, I've put the most common materials into a table. This is the starting point I use with most of my clients.
| Material | Typical Vacuum Level | Cost | Key Feature | Downside |
|---|---|---|---|---|
| Stainless Steel | High to Ultra-High | High | Low Outgassing, Strong | Heavy, Expensive |
| Aluminum | Rough to High | Medium | Lightweight, Good Heat Transfer | Higher Outgassing than SS |
| Acrylic | Rough to Low | Low | Transparent | High Outgassing, Scratches Easily |
From my experience, I caution against using acrylic for anything beyond basic, low-vacuum work. I’ve seen acrylic chambers develop tiny stress fractures, or "crazing," over time, which can become leak paths. It's great for demonstrations or when you absolutely must see what's happening, but it's not a workhorse material like metal.
Can aluminum be used in a vacuum?
You might be considering aluminum for its light weight and lower cost. But you might worry if it can actually handle a deep vacuum without causing issues. Let’s look at when aluminum is a great choice.
Yes, aluminum is widely used for vacuum chambers, especially in high vacuum (HV) systems. Its light weight and excellent thermal conductivity make it ideal for many applications, though it is less common for ultra-high vacuum (UHV).

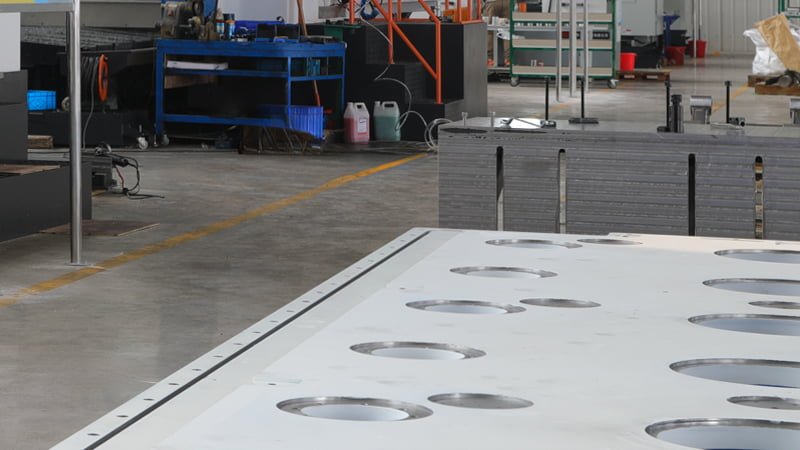

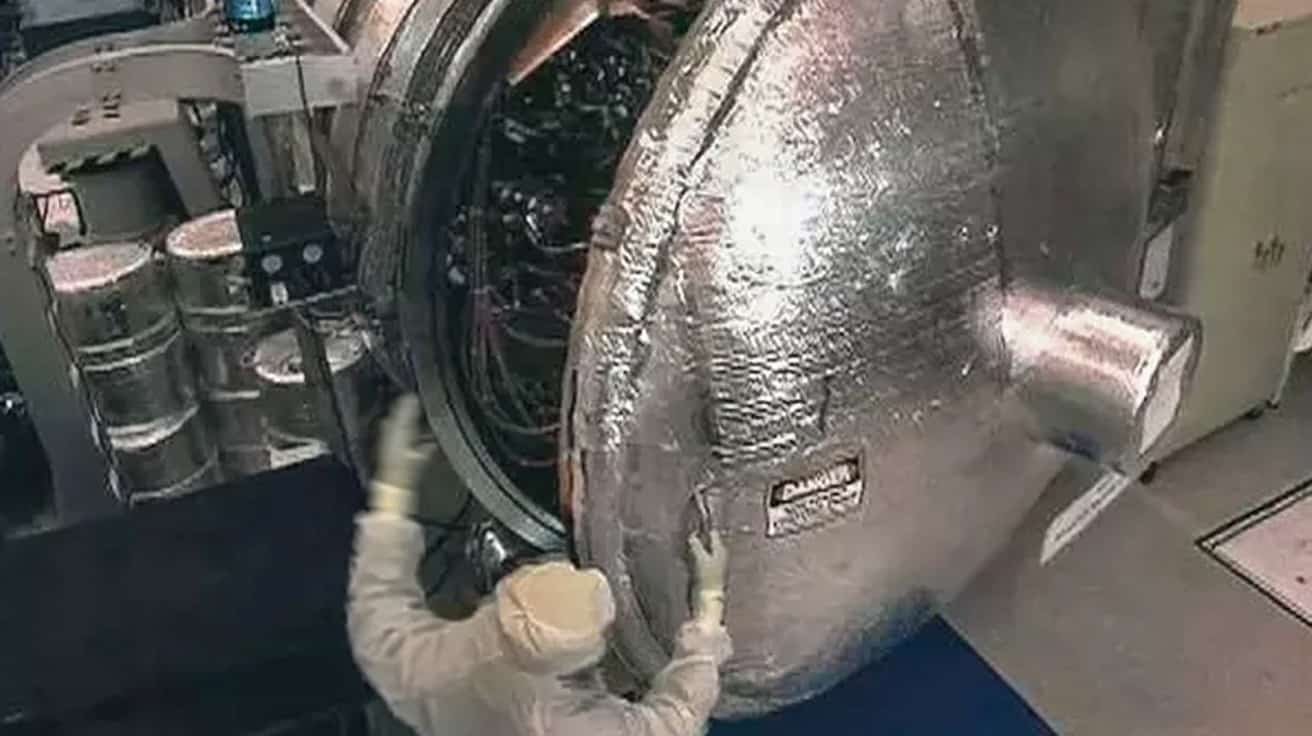

I once worked with a research group that needed a portable vacuum system for field analysis. A stainless steel chamber would have been far too heavy. We sourced a custom 6061-T6 aluminum chamber for them, and it was the perfect solution. It was easy to transport and its thermal properties helped their experiments stabilize quickly. This highlights exactly where aluminum shines.
The Advantages of Aluminum
The most obvious benefit of aluminum is its weight. It's about one-third the density of stainless steel, making it much easier to handle, especially for larger or portable systems. It is also cheaper, not just in raw material cost but also in machining time. Its best technical feature is its high thermal conductivity. This means it heats up and cools down quickly and evenly, which is a huge benefit for processes like baking out the chamber to drive off water vapor and achieve lower pressures faster.
Potential Drawbacks and Solutions
The main drawback of aluminum is its higher outgassing rate compared to stainless steel. This is due to the porous nature of its natural oxide layer, which can trap water molecules. For this reason, it’s not the first choice for UHV applications where every molecule counts. However, for many high vacuum applications, this is perfectly acceptable. To improve performance, aluminum chambers can undergo special treatments like electropolishing or anodizing, which can create a denser, less porous surface and significantly reduce outgassing.
What stainless steel is vacuum compatible?
You already know stainless steel is the gold standard for many vacuum applications. But using the wrong alloy can still cause outgassing or welding problems. Let’s look at the specific grades you need.

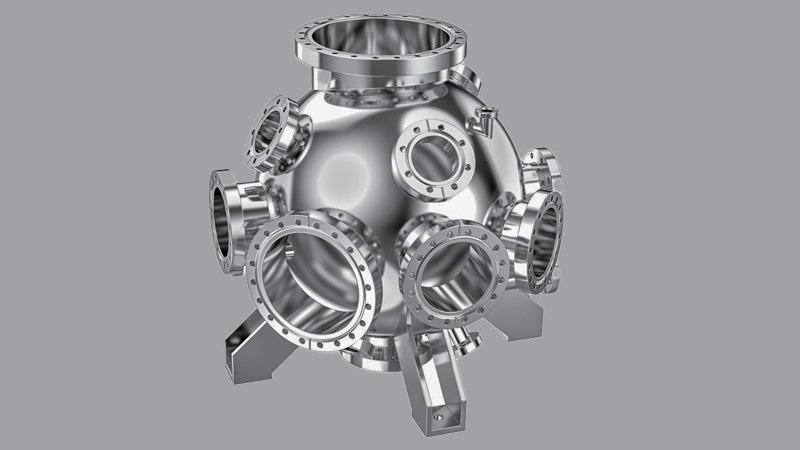

The most common vacuum-compatible stainless steels are from the 300 series, specifically grades 304 and 316L. These austenitic grades offer low outgassing rates, excellent strength, and good corrosion resistance for reliable performance.
When a customer needs a robust, reliable chamber for a high-purity process or an ultra-high vacuum system, my recommendation is always stainless steel. There's a reason it's the industry standard. Its dense, stable structure holds very little trapped gas, allowing you to pump down to very low pressures. But not all stainless steel is created equal.
The Workhorse: 304 Stainless Steel
Grade 304 is the most popular choice for general-purpose high vacuum chambers. It's strong, readily available, and has a very low outgassing rate once it has been properly cleaned and prepared. It offers a fantastic balance of performance and cost. For the majority of industrial and research applications in the high vacuum range, 304 is more than capable and will provide a long service life.
The Premium Choice: 316L Stainless Steel

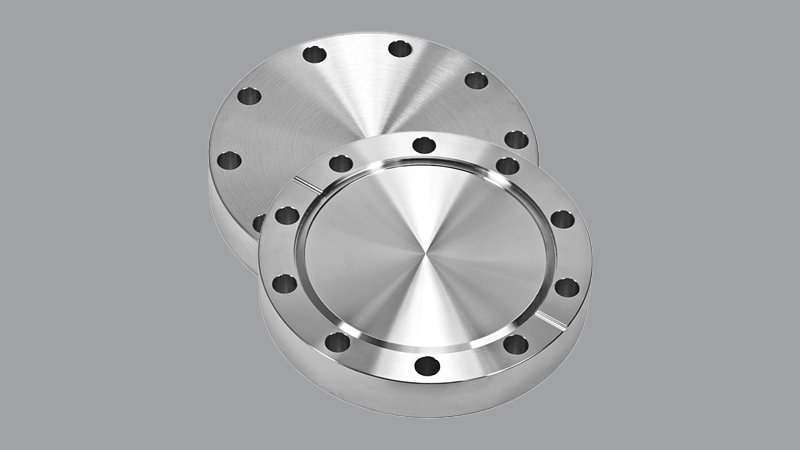

For more demanding applications, I steer clients toward 316L. The "L" stands for "low carbon." This is critical if the chamber involves any welding. The low carbon content prevents a problem called carbide precipitation at the weld seams, which can compromise both corrosion resistance and vacuum integrity. Grade 316 also includes molybdenum, which gives it superior resistance to corrosion, especially from chlorides. This makes 316L the necessary choice for UHV systems, semiconductor processing, and medical applications where purity and material stability are non-negotiable.
What is the best shape for a vacuum chamber?
The material is chosen, but what about the chamber's shape? A poor design can implode under atmospheric pressure, which is a catastrophic and dangerous failure. Let's understand the physics of safe chamber design.

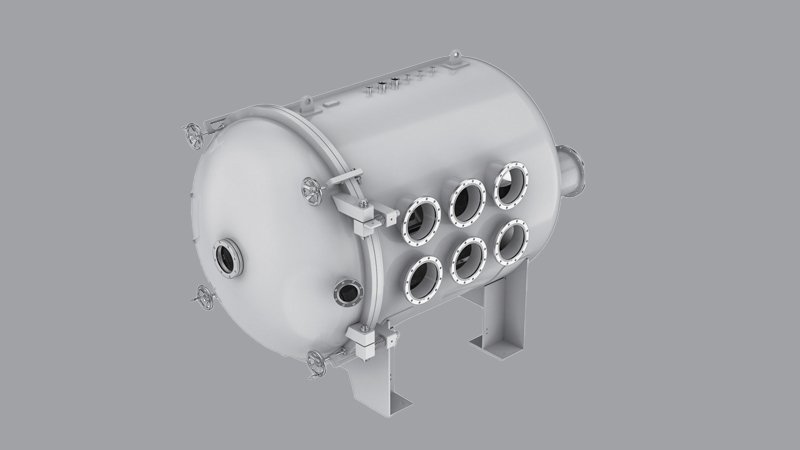

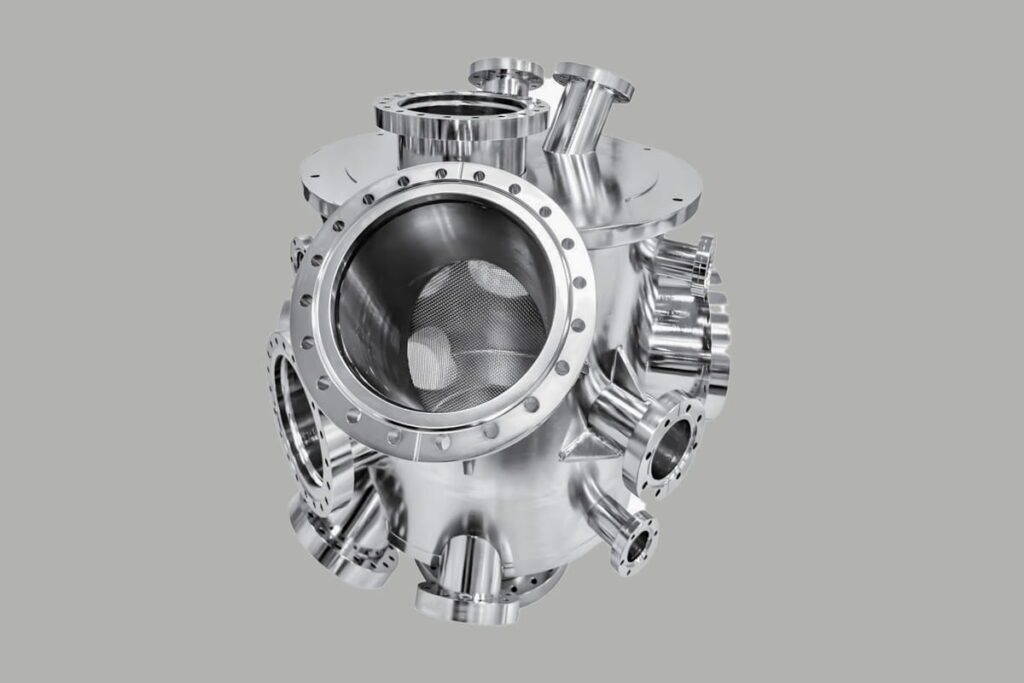

The best shapes for a vacuum chamber are spherical or cylindrical with domed ends. These shapes distribute the immense atmospheric pressure evenly across their surfaces, preventing weak points and minimizing the risk of collapse.
Think about the forces at play. When you pull a vacuum, you're not "sucking" the air out. You are removing the air from the inside, which allows the full pressure of the atmosphere on the outside—about 14.7 pounds per square inch at sea level—to push in on every surface of the chamber. On a small 12x12 inch flat lid, that's over 2,100 pounds of force! The shape of the chamber is what manages this incredible load.
Why Curves Are King
A sphere is technically the perfect shape. The curved surface distributes the external pressure perfectly, turning the crushing force into pure compression within the material. However, spheres are difficult and expensive to manufacture and are not practical to access. The next best thing, and the most common design you'll see, is a cylinder with domed or dished ends. Like an arch in a bridge, the curved walls and ends are incredibly strong against external pressure. This design provides an excellent balance of strength, manufacturing cost, and usability.
The Problem with Flat Surfaces
Rectangular or cubic chambers are sometimes used for their convenient internal space, but they are an engineering challenge. The flat walls have a natural tendency to bow inward under atmospheric pressure. This concentrates immense stress in the center of the flat planes and especially at the corners. To prevent collapse, cubic chambers must be built with extremely thick walls or extensive external bracing, which makes them very heavy and expensive. For any high-vacuum application, I always advise clients to stick with a cylindrical design unless there is an overwhelming reason to do otherwise. The inherent strength of a curved surface is simply safer and more efficient.
Final Thoughts
Choosing your chamber's material and shape is a critical first step. Balance your vacuum needs, budget, and specific application to ensure a safe and successful system.
