Are you seeing oil mist or particles coming from your vacuum pump's exhaust? This issue can harm your environment, your product, and even your valuable pump itself.
A vacuum exhaust filter is a critical component that captures oil mist, particulate matter, and harmful fumes from a vacuum pump's discharge. It is essential because it protects the pump, maintains a clean work environment, prevents product contamination, and ensures compliance with health and safety regulations.
As someone who has worked with vacuum pumps for over a decade, I have seen firsthand the huge difference a good exhaust filter makes. It is not just an add-on; it is a necessity for many applications. Let's explore why this simple component plays such a vital role in your vacuum system.
Why are vacuum exhaust filters a must-have for your system?
You might wonder why a vacuum pump needs another component like an exhaust filter. The truth is, without one, your operations could face serious problems.
Vacuum exhaust filters are a must-have because oil-sealed rotary vane pumps naturally produce a fine oil mist during operation, especially at pressures greater than 133 Pa. This filter effectively eliminates visible oil mist and smoke from the exhaust, ensuring clean air is expelled to the environment and preventing contamination.
From my 10 years in this industry, I have learned that vacuum pump operations, particularly with oil-sealed rotary vane pumps, inherently create a fine oil mist. When these pumps operate, especially at pressures higher than 133 Pascal (or 1.33 millibar), tiny droplets of lubricating oil become suspended in the air. This oil mist is often invisible initially but can become a noticeable "smoke" as it exits the pump's exhaust. This is where the exhaust filter, also known as an Oil Mist Filter (OMF), becomes absolutely essential. Its primary purpose is to capture all, or at least most, of these oil particles before they escape into the surrounding environment.
Imagine a workshop filling with a fine, oily haze. This not only makes the air unpleasant to breathe but also creates slippery surfaces, posing a safety hazard. Furthermore, this oil mist can settle on sensitive equipment, leading to corrosion or malfunction, and even contaminate delicate products in processes like semiconductor manufacturing or pharmaceutical production.
I recall a client in a cleanroom environment who experienced consistent product defects until we traced the problem back to an unfiltered vacuum pump exhaust. The fine oil particles were landing on their products. The exhaust filter is vital not just for environmental protection, but also for maintaining a safe and clean workspace, protecting nearby machinery, and ensuring product quality. It acts as a final barrier, safeguarding everything beyond the pump itself from harmful discharge.
Key Reasons for Needing a Vacuum Exhaust Filter
| Reason | Explanation | Consequence Without Filter |
|---|---|---|
| Environmental Protection | Prevents oil mist and particulate release. | Air pollution, regulatory fines. |
| Workspace Safety | Reduces slippery floors and airborne hazards. | Increased risk of accidents, poor air quality for workers. |
| Equipment Longevity | Protects nearby machinery from oil contamination. | Corrosion, malfunction, reduced lifespan of other assets. |
| Product Quality | Prevents contamination of sensitive processes. | Product defects, costly reworks, batch spoilage. |
| Health Compliance | Ensures compliance with air quality regulations. | Health issues for personnel, legal ramifications. |
How does a vacuum pump's exhaust system manage contaminants?
You might wonder, once a vacuum pump has processed the gas, what happens to the contaminants it picked up? The exhaust system is designed specifically to manage them.

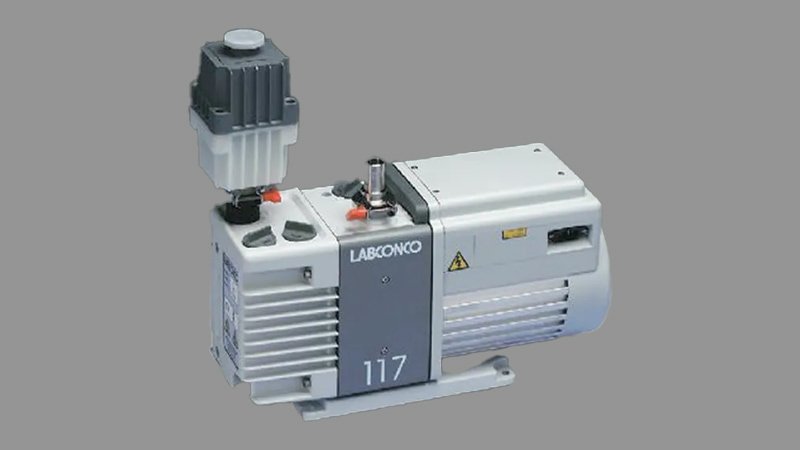

A vacuum pump's exhaust system actively manages the discharge of process gases, vapors, and entrained contaminants like oil mist. It often includes an exhaust filter to trap these pollutants, directing clean air out while containing harmful substances before they reach the environment.
When a vacuum pump operates, it pulls gas from a process chamber. During this action, especially in oil-sealed pumps, not only is gas expelled, but also tiny oil droplets, often called oil mist. This happens because the oil within the pump acts as both a lubricant and a seal, and as gas passes through it at high speed, some oil becomes aerosolized. This mixture of gas and oil mist then needs to be handled. The exhaust system is the complete path for this discharge. It starts at the pump's exhaust port and leads outwards. Its primary function is to direct this outflow safely away.
However, a truly effective exhaust system does more than just direct; it actively processes the discharge. This is where the exhaust filter comes into play. It is specifically designed to manage what comes out. As the gas-oil mist mixture travels through the exhaust system, it encounters the filter element. The filter's design forces the gas and mist through a specialized medium, which captures the oil droplets. The "clean" air then exits the system. For applications with specific hazardous vapors or odors, the exhaust system might also integrate additional components, such as activated carbon filters or scrubbers, further downstream to neutralize or capture those particular substances.
The system also plays a crucial role in noise reduction. The rapid expulsion of gas from a vacuum pump can be quite loud. Therefore, exhaust systems often include silencers or baffles as part of their design to dampen the sound, making the workplace more comfortable. The exhaust system is, in essence, the pump's environmental management unit, ensuring safe and compliant operation.
Key Components of a Vacuum Pump Exhaust System
| Component | Primary Role | Benefit |
|---|---|---|
| Exhaust Port | Exit point for gas/mist from the pump. | Directs flow to the rest of the system. |
| Exhaust Filter | Captures oil mist, particles, and some vapors. | Cleans discharged air, protects environment. |
| Piping/Ducting | Conveys the filtered gas away from the pump. | Safe routing of exhaust away from workspace. |
| Silencer/Baffle | Dampens acoustic energy from gas discharge. | Reduces noise levels, improves working conditions. |
| Specialized Traps | Captures specific, often hazardous, process contaminants. | Prevents dangerous emissions, protects environment. |
What are the common types and materials of vacuum exhaust filters?
It can be confusing to choose the right exhaust filter with so many options. Knowing the different types and materials helps ensure you pick the best one for your needs.
Common vacuum exhaust filters include ordinary oil mist filters and updated versions with oil recovery ports. Their housings are typically made of cast iron or plastic, while the internal filter elements are crafted from high-quality microfiber glass in common sizes like KF16, KF25, and KF40.
When I guide customers through selecting an exhaust filter, I always highlight the variety available. The "Different types of the exhaust filter" mostly revolve around their features and the materials used. The most common is the ordinary Oil Mist Filter (OMF). This filter simply captures oil mist and expels the cleaner air. It is straightforward and often installed directly onto the vacuum pump's exhaust port using a simple clamp. This type is generally very effective at providing clean air.
However, there is also an updated oil mist filter with a special side port. This design is a significant improvement because it not only captures oil mist but also allows the filtered oil to return directly to the pump's oil reservoir. This feature offers a clear advantage: the recovery of vacuum oil can lead to substantial cost savings, especially if you use expensive specialized vacuum oils. The main "con" with this type is that, sometimes, the achieved ultimate pressure of the pump might not be as low as when using an ordinary filter, due to the slight back pressure from the oil return line.

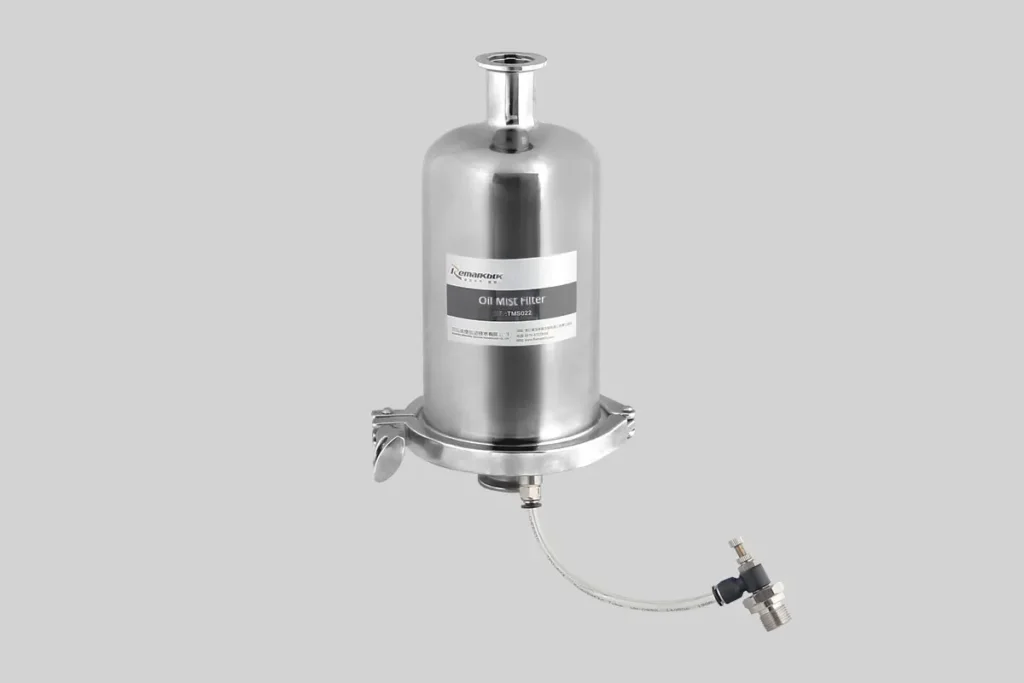

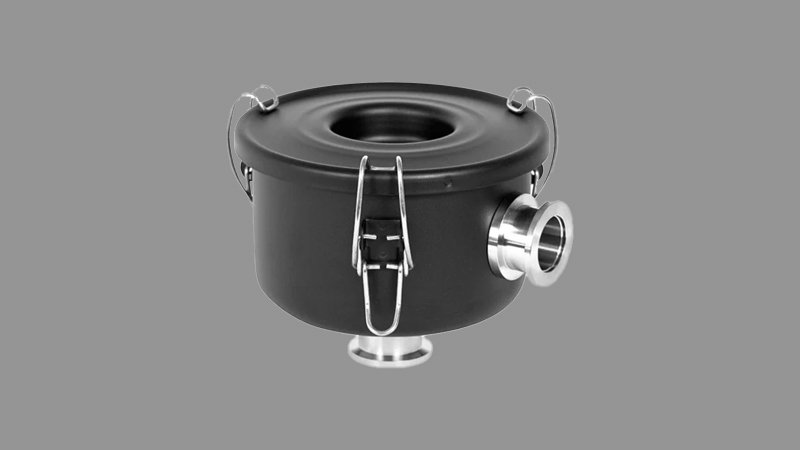

Regarding "Filter's material", the external housing of these filters is commonly made of cast iron for durability and robustness, or plastic for lighter weight and corrosion resistance in certain applications. Inside the filter housing, there is a replaceable filter element, often called a cartridge. This cartridge is typically made of microfiber glass. High-quality microfiber glass is crucial because it effectively secures the oil particles as they pass through the filter, ensuring excellent filtration efficiency.
The size of the filter also matters; common connection sizes like KF16, KF25, and KF40 determine the flow capacity. A larger filter housing allows for a larger cartridge, which increases the filtering surface area and overall efficiency, often leading to lower flow resistance and thus helping to increase working efficiency for the pump.
Common Vacuum Exhaust Filter Characteristics
| Feature | Description | Implication for Use |
|---|---|---|
| Types | Ordinary OMF vs. OMF with oil return port. | Oil recovery for cost savings, potential pressure impact. |
| Housing Material | Cast iron (durable) or Plastic (lighter, corrosion-resistant). | Choice depends on application and environment demands. |
| Element Material | Microfiber glass cartridge. | High filtration efficiency for oil mist and particles. |
| Common Sizes | KF16, KF25, KF40 (connection sizes). | Dictates flow capacity and compatibility with pumps. |
| Filter Size Impact | Larger cartridges increase filtering space and efficiency. | Improved performance, lower flow resistance. |
How often should you replace your vacuum exhaust filter, and why?
Ignoring filter replacement can seem like a small detail, but it can quickly lead to big problems for your vacuum pump and overall operations.
You should replace your vacuum exhaust filter element regularly, typically every 6 months or after 2000 working hours, whichever comes first. Regular replacement is crucial because it prevents oil accumulation, guards against physical damage to the pump, and maintains optimal filtration efficiency.

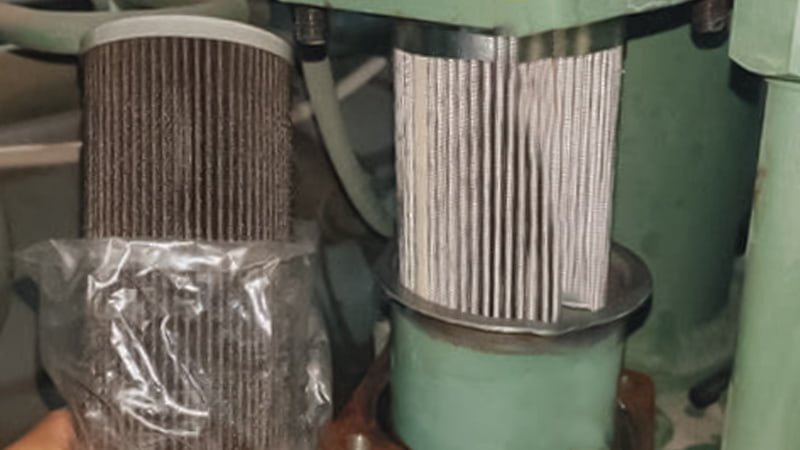

In my extensive experience, one of the most overlooked aspects of vacuum pump maintenance is the replacement schedule for the exhaust filter. Many users install an exhaust filter and forget about it. However, a "regular replacement of exhaust filter" is not just a recommendation; it actively "guards the vacuum pumps from oil accumulation, physical damage and more." Over time, the filter element, which is typically made of high-quality microfiber glass, becomes saturated with the oil mist and particles it captures. When it is saturated, its efficiency drops significantly. It will no longer effectively trap contaminants, meaning oil mist will start escaping into your workspace again.
Beyond just reduced filtration, a saturated filter creates increased back pressure on your vacuum pump. The pump has to work harder to push air through the clogged element. This extra strain can lead to increased power consumption, overheating of the pump, and accelerated wear on internal components, potentially shortening the pump's lifespan. I've seen pumps struggle unnecessarily just because of a neglected filter. That is why it is "recommended to replace the oil mist filter every 6 months or 2000 working hours," whichever milestone you reach first. This interval ensures peak performance and pump longevity.
For example, some high-quality filters, like the "Remarkbl exhaust filter," are specifically designed with a "high quality large stainless steel housing, an imported 50CS grade fiberglass filter element and a recycling hose." Such features allow the "vacuum pump operate eco-friendly" and maintain efficiency, but even these need regular replacement to ensure continued optimal performance. Adhering to this simple maintenance schedule is a small investment that protects a much larger one.
Filter Replacement Schedule and Benefits
| Action | Frequency | Key Benefits |
|---|---|---|
| Regular Replacement | Every 6 months or 2000 working hours, whichever comes first. | Prevents filter saturation, maintains high filtration efficiency. |
| Prevents Oil Accumulation | Avoids oil escaping into environment, keeps workspace clean. | |
| Guards Against Damage | Reduces back pressure on pump, prevents overheating and wear. | |
| Maintains Efficiency | Ensures pump operates at optimal performance, saves energy. | |
| Supports Eco-Friendly Ops | (especially with recycling hose/high-quality filters) | Reduces environmental impact, potentially lowers oil consumption. |
Closing Summary
Vacuum exhaust filters are indispensable for oil-sealed pumps, effectively capturing mist and contaminants. Regular replacement is vital to ensure pump longevity, maintain air quality, and guarantee a clean, safe, and compliant operational environment.
