What is a Dry Rotary Vane Vacuum Pump?

Are you exploring vacuum pump options and encountering the term "dry rotary vane"? This technology offers distinct advantages for specific applications where oil contamination is a concern. I've seen them solve many challenges.

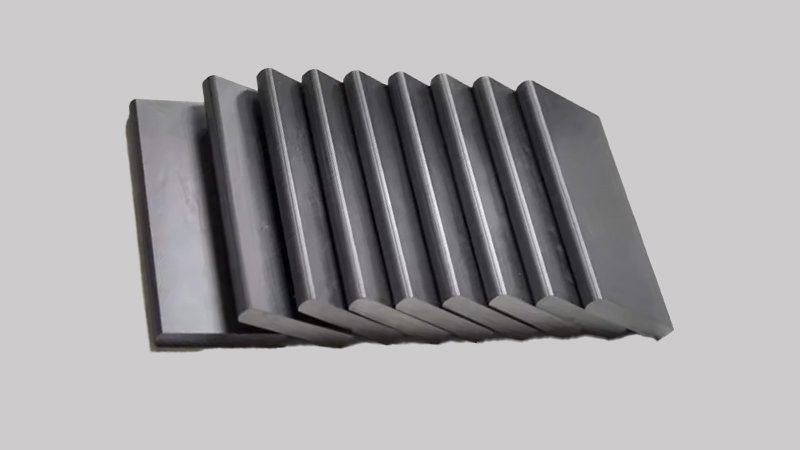

A dry rotary vane vacuum pump is a positive displacement pump that uses self-lubricating vanes, typically made of graphite composite, to sweep gas through a cylindrical housing without the need for oil in the pumping chamber, ensuring an oil-free vacuum.

The world of vacuum pumps is diverse, and choosing the right one can sometimes feel overwhelming. One type that often comes up, especially when oil-free operation is a priority, is the dry rotary vane vacuum pump. Unlike their oil-sealed counterparts, these pumps are engineered to operate without any lubricating oil in the actual pumping mechanism that contacts the process gas. This "dry" operation is their defining characteristic and offers significant benefits in certain applications where product purity or environmental concerns are paramount. I've worked with many clients who specifically require this type of pump for their processes. Let's delve into what makes them tick and where they fit best.

What is a rotary vane vacuum pump used for?

You might be wondering about the versatility of rotary vane vacuum pumps in general. Their fundamental design makes them suitable for a surprisingly broad array of tasks across many industries.

Rotary vane vacuum pumps, both oil-sealed and dry types, are widely used for creating rough to medium vacuum levels in applications like packaging, medical equipment, printing presses, material handling, degassing, and laboratory procedures due to their reliability and cost-effectiveness.

Rotary vane vacuum pumps are true workhorses in the vacuum world. Their relatively simple design, which involves an eccentrically mounted rotor with sliding vanes inside a cylindrical housing, allows them to efficiently move air and other gases. The oil-sealed versions are perhaps the most common, found in countless applications from HVAC system evacuation to general industrial vacuum. They can achieve good vacuum levels and are known for their robustness. I've seen them used for vacuum chucking in CNC machining, holding parts securely for processing. In the printing industry, they're used for paper feeding and handling. Food packaging extensively uses them for modified atmosphere packaging (MAP) and vacuum sealing to extend shelf life.

Dry rotary vane pumps, while sharing the same basic operating principle, open up even more possibilities where oil contamination is unacceptable. These are very popular for applications like CNC engraving machines to hold down materials, in smaller centralized vacuum systems for workshops, and various types of packaging machinery. Medical and dental aspirators often rely on dry vane pumps to ensure no oil mist contaminates the patient environment.

Analytical instruments and laboratory equipment frequently incorporate small dry vane pumps for sample preparation or to provide a fore-vacuum for higher vacuum pumps. Their ability to provide a clean vacuum is a major draw. I've also seen them successfully used in environmental air sampling, aeration for aquaculture, and even in certain robotics applications requiring vacuum for gripping.

Common Applications Across Types:

• Packaging: Vacuum sealing food, pharmaceuticals, and consumer goods; modified atmosphere packaging.
• Printing Industry: Sheet feeding, collating, bookbinding, print drying.
• Material Handling: Pick-and-place operations, vacuum lifting devices, pneumatic conveying of powders.
• Medical & Dental: Suction equipment, aspirators, autoclaves, dental vacuum systems.
• Environmental Monitoring: Air sampling, soil vapor extraction.
• Laboratory Use: Degassing liquids, filtration, solvent evaporation, backing for high vacuum pumps.
• CNC Machining/Engraving/Woodworking: Vacuum hold-down tables for securing workpieces.
• Electronics Manufacturing: Pick-and-place for SMT components, de-soldering.
• Plastics Industry: Thermoforming, extruder degassing.
• Aeration: Aquaculture, wastewater treatment.

Application Category	Specific Use Examples	Key Benefit of Rotary Vane Pump
Industrial Automation	Pick-and-place robots, vacuum grippers, clamping.	Reliability, consistent vacuum.
Food & Beverage	Vacuum packaging, bottle filling, milking machines.	Extends shelf life, hygienic (dry type).
Graphic Arts/Printing	Offset presses, paper handling, exposure frames.	Precise paper movement, hold-down.
Medical/Laboratory	Aspirators, sterilizers, degassing, solvent evaporation.	Oil-free (dry type), compact size.
Manufacturing	CNC hold-down, plastics forming, woodworking.	Strong holding force, dust tolerance (dry).

What is the function of a dry vacuum pump?

When you see "dry" in front of "vacuum pump," what does that specifically imply about its operation and benefits? This distinction is crucial for many sensitive applications.

The primary function of a dry vacuum pump is to create a vacuum without using any oil or other liquids in the pumping chamber that could come into contact with the process gas. This ensures an oil-free, contaminant-free vacuum, crucial for processes requiring high purity.

The term "dry" is key here. In traditional oil-sealed vacuum pumps, oil is used to lubricate moving parts and, importantly, to seal the clearances between those parts to achieve a good vacuum. While effective, this oil can backstream into the vacuum system or be carried out as a fine mist in the exhaust, potentially contaminating the process or the environment. A dry vacuum pump, by contrast, is designed to eliminate this oil from the gas path entirely. For a dry rotary vane pump, this is achieved by using self-lubricating materials for the vanes, often a specialized carbon graphite composite, which can run against the pump cylinder without needing liquid lubrication. Other dry pump technologies like scroll pumps, diaphragm pumps, or dry screw pumps achieve this oil-free operation through different mechanical designs but with the same goal: no oil in the swept volume.

The main function, therefore, is to provide a clean vacuum. This is absolutely critical in many high-tech industries. For example, in semiconductor manufacturing, any trace of oil contamination can ruin expensive wafers. In pharmaceutical production or food processing, oil contamination can lead to product spoilage or health hazards. Scientific instruments like mass spectrometers or electron microscopes require pristine vacuum conditions for accurate results. So, the function of a dry vacuum pump goes beyond just creating low pressure; it's about creating that low pressure cleanly.

I’ve helped many customers transition to dry pumps specifically to improve their product quality, reduce contamination-related rejects, and comply with stricter environmental or process regulations. The ability to handle certain aggressive or condensable vapors without contaminating oil is another significant advantage in specific chemical applications.

Key Aspects of Dry Vacuum Pump Functionality:

• Oil-Free Pumping Chamber: No oil or other sealing fluids are present in the path of the process gas. This is the defining characteristic that separates them from "wet" pumps.
• Contamination Prevention: This design eliminates the risk of oil backstreaming into the vacuum system or oil mist being discharged in the exhaust. This protects sensitive processes, products, and analytical instruments.
• Reduced Maintenance (Oil-Related): A significant operational advantage is the elimination of oil changes, routine oil top-ups, and the need for proper disposal of contaminated oil. This simplifies maintenance schedules and can reduce long-term operating costs.
• Environmental Friendliness: By avoiding oil mist emissions and the generation of used oil waste, dry pumps are often a more environmentally sound choice, especially in regions with stringent environmental regulations.
• Handling of Certain Vapors: Some dry pump designs, due to the absence of oil which can be degraded or contaminated by process vapors, can handle certain condensable or mildly corrosive vapors more effectively than their oil-sealed counterparts.

Functional Aspect	Benefit in Application	Example Industries Benefiting
Oil-Free Vacuum Generation	Prevents contamination of products, processes, or sensitive instruments.	Semiconductor, Pharmaceutical, Food & Beverage, R&D Labs.
No Oil Mist Exhaust	Cleaner working environment, no need for exhaust mist filters for oil.	Cleanrooms, laboratories, medical device manufacturing.
Reduced Oil Maintenance	Lower operating costs, less downtime associated with oil changes.	Any continuous operation where oil maintenance is a burden.
Environmental Compliance	Easier to meet regulations regarding emissions and waste oil disposal.	Industries with strict environmental standards.

What is the purpose of a rotary pump?

Understanding the fundamental purpose of a rotary pump helps to appreciate its widespread use across so many different technologies and applications, including vacuum generation.

The purpose of a rotary pump, in a general sense, is to move fluids (liquids or gases) using rotating components. In the context of vacuum, a rotary vacuum pump's purpose is to displace gas from a sealed volume, thereby reducing the pressure within that volume to create a vacuum.

The term "rotary pump" is quite broad and encompasses many designs like gear pumps, lobe pumps, screw pumps, and, of course, vane pumps. What they all have in common is the use of one or more rotating elements to transfer energy to the fluid being pumped, causing it to move from an inlet to an outlet. When we talk specifically about rotary vacuum pumps, like the rotary vane type (either oil-sealed or dry), their purpose is very specific: to evacuate gas molecules from an enclosed chamber or system. They achieve this by a mechanism of positive displacement. This means they trap a certain volume of gas, isolate it from the inlet, then compress it (in some designs) and expel it to the outlet, which is usually at a higher pressure (e.g., atmospheric pressure or the inlet of another pump).

I often explain it like this: imagine a series of chambers created by the rotating vanes (in a vane pump) or lobes (in a Roots pump) that continuously expand at the inlet side, drawing gas in. These chambers then contract or are swept towards the outlet, pushing the trapped gas out. By repeating this cycle rapidly, the pump progressively reduces the number of gas molecules remaining in the system, thereby lowering the pressure and creating a vacuum. The specific "purpose" can range from creating a rough vacuum for holding parts, to a medium vacuum for drying processes, or even acting as a forepump for high-vacuum pumps that can't operate directly against atmospheric pressure. The versatility of the rotary principle, which allows for continuous, relatively smooth flow and the ability to handle varying pressures, is why it's so widely adopted in vacuum technology.

Rotary Pump Principle in Vacuum Applications:

• Gas Entrapment: The core of the operation involves rotating elements (such as vanes sliding in a rotor, intermeshing lobes, or helical screws) that create enclosed pockets or chambers. As these elements rotate, these chambers expand on the inlet side of the pump, trapping gas from the system being evacuated.
• Gas Transfer: Continued rotation of these elements then isolates these gas-filled pockets from the inlet and physically moves them through the pump's housing from the low-pressure (inlet) side towards the higher-pressure (outlet or exhaust) side.
• Gas Compression (in some types) and Expulsion: As the trapped gas moves towards the outlet, the volume of the pocket often decreases, compressing the gas. Finally, the gas is expelled from the pump, typically against atmospheric pressure or into the inlet of a subsequent pump in a multi-stage vacuum system.
• Continuous Evacuation Cycle: This cyclical process of gas entrapment, transfer, (compression), and expulsion repeats rapidly and continuously as long as the pump is operating, resulting in a progressive reduction of pressure within the connected vacuum system.
• Critical Sealing: Effective sealing is paramount. This prevents backflow of gas from the higher-pressure outlet side to the lower-pressure inlet side. In oil-sealed rotary vane pumps, an oil film provides this seal. In dry rotary vane pumps, very tight mechanical clearances and the self-lubricating properties of the vanes achieve this.

Rotary Pump Characteristic	Role in Vacuum Generation	Example of Vane Pump Action
Rotating Element(s)	Drives the gas transfer process.	Eccentrically mounted rotor with sliding vanes.
Positive Displacement	Moves discrete volumes of gas with each rotation.	Vanes create expanding/contracting cells.
Inlet Port	Connects to the system being evacuated.	Gas drawn into expanding cells as vanes pass the inlet.
Outlet/Exhaust Port	Discharges the pumped gas.	Gas compressed and expelled as cells pass the outlet.
Sealing Mechanism	Prevents backflow of gas from outlet to inlet.	Oil film or close-tolerance self-lubricating vanes.

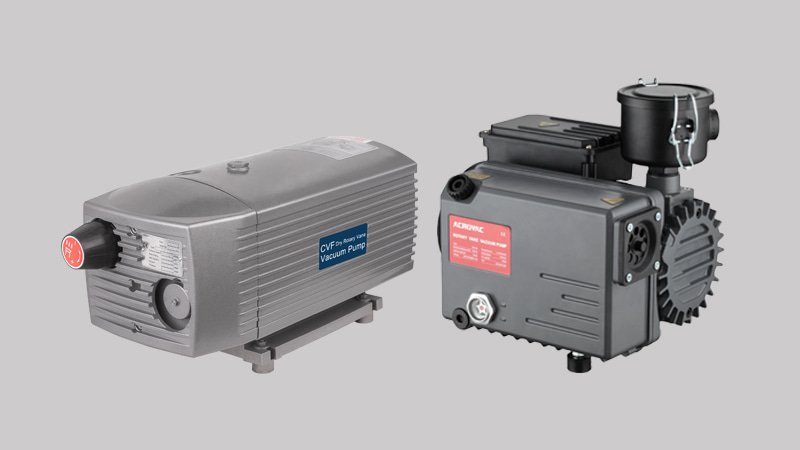

What is the difference between a wet vacuum pump and a dry vacuum pump?

When selecting a vacuum pump, the terms "wet" and "dry" are fundamental differentiators. Understanding this distinction is crucial for choosing the right pump for your specific process needs and avoiding contamination issues.

The key difference lies in the pumping mechanism: a wet vacuum pump (like an oil-sealed rotary vane pump) uses oil or another liquid sealant in the pumping chamber for lubrication and sealing. A dry vacuum pump operates without any such liquids in the gas path, ensuring an oil-free output.

I often get asked to clarify the difference between "wet" and "dry" vacuum pumps, and it's a very important distinction that directly impacts suitability for various applications. The "wet" in a wet vacuum pump refers to the presence of a liquid – most commonly a specially formulated vacuum pump oil, but it could also be water in the case of liquid ring pumps – within the actual pumping chamber where the gas is being compressed and moved.

This liquid serves several vital purposes: it lubricates the moving parts (for example, the vanes rubbing against the cylinder wall in a rotary vane pump), it helps to seal the fine clearances between these moving parts and the pump housing to prevent internal gas leakage (which is crucial for achieving a good vacuum), and it also helps to cool the pump by absorbing some of the heat generated during gas compression. Oil-sealed rotary vane pumps are a classic and widely used example of wet pumps. They are known for their robustness, ability to achieve good vacuum levels efficiently, and are often a cost-effective solution for many general vacuum tasks. However, the fundamental presence of oil in the pumping mechanism means there's always a potential, however small, for oil vapor to backstream into the vacuum system or for oil mist to be present in the pump's exhaust, which can be undesirable or unacceptable in certain processes.

A "dry" vacuum pump, on the other hand, is specifically engineered so that no oil or any other liquid sealant comes into direct contact with the process gas within the pumping chamber. This oil-free operation is achieved through various clever engineering solutions depending on the specific type of dry pump. For dry rotary vane pumps, as we've discussed earlier, this typically involves using vanes made from self-lubricating materials like specialized carbon graphite composites. These vanes can run effectively against the pump cylinder wall without needing liquid lubrication. Other common dry pump technologies include scroll pumps (where two interleaved spiral-shaped scrolls create moving pockets of gas without physical contact between the scrolls), diaphragm pumps (where a flexible diaphragm oscillates to displace gas), and dry screw pumps (where two precisely machined, intermeshing screws rotate without contact to trap and transport gas).

The overwhelming advantage of dry pumps is the complete elimination of oil contamination from the vacuum process. This makes them the ideal choice for sensitive applications commonly found in industries such as semiconductor manufacturing, pharmaceuticals, food processing, and advanced research laboratories where product purity and the integrity of the vacuum environment are absolutely paramount. While dry pumps generally have a higher initial purchase cost compared to their wet counterparts for similar performance, the long-term benefits of cleaner operation, reduced maintenance associated with oil, and elimination of oil disposal costs can often make them the more economical choice in the long run for specific applications.

Core Differences: Wet vs. Dry Vacuum Pumps

• Pumping Chamber Environment:
  • Wet Pumps: Utilize oil (or another liquid like water in liquid ring pumps) directly in the gas path for critical functions like sealing the clearances between moving parts and for lubrication.
  • Dry Pumps: Are designed to operate with no oil or any other liquid present in the gas path. They rely on very tight manufacturing tolerances, specific material properties (e.g., self-lubricating vanes), or non-contacting rotor designs to achieve vacuum.
• Risk of Process Contamination:
  • Wet Pumps: Carry an inherent risk of oil backstreaming (oil vapor migrating from the pump into the vacuum system) or oil mist being discharged with the exhaust gas. This can contaminate sensitive products or processes.
  • Dry Pumps: Virtually eliminate the possibility of process contamination originating from pump lubricants, providing a "clean" vacuum.
• Maintenance Requirements:
  • Wet Pumps: Necessitate regular oil changes, diligent monitoring of oil levels and condition, and proper disposal of used, potentially contaminated oil. Exhaust mist filters, if used, also require periodic replacement.

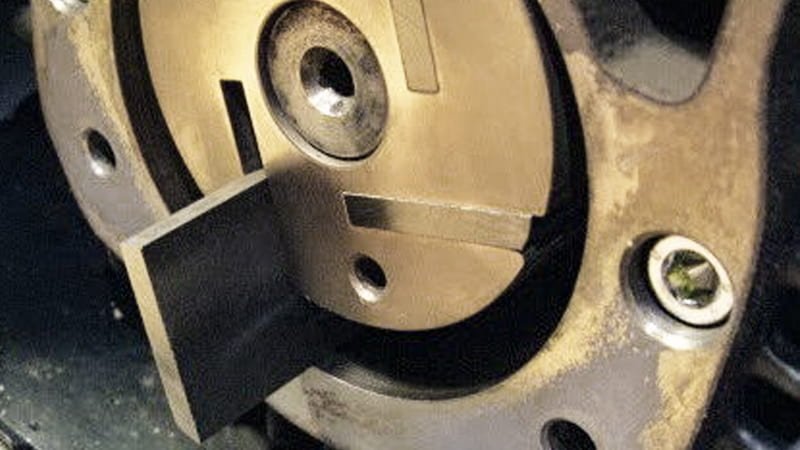

  • Dry Pumps: Eliminate all oil-related maintenance tasks. Depending on the specific dry pump technology and application, they may require periodic replacement of wear items like tip seals (on scroll pumps) or vanes (on dry vane pumps), but generally have simpler maintenance routines.
• Ultimate Vacuum & Applications:
  • Both wet and dry pump technologies are available to cover a vast range of vacuum levels. Oil-sealed rotary vane pumps are excellent for achieving rough to good medium vacuum levels (e.g., down to 10⁻³ mbar). Dry pumps also span this range (dry rotary vane, scroll, diaphragm, screw pumps) and are the only option for high and ultra-high vacuum applications (e.g., turbomolecular pumps, ion pumps, cryopumps, which are all inherently dry).
• Initial and Operational Costs:
  • Wet Pumps: Typically have a lower initial purchase cost for comparable pumping speed and vacuum level in the rough to medium vacuum range. However, ongoing operational costs include oil, filters, and disposal.
  • Dry Pumps: Usually involve a higher initial investment. However, they can offer lower long-term operating costs in many cases due to reduced maintenance (no oil, fewer consumables), elimination of oil disposal costs, and prevention of product contamination which can be very expensive.

Feature	Wet Vacuum Pump (e.g., Oil-Sealed Rotary Vane)	Dry Vacuum Pump (e.g., Dry Rotary Vane, Scroll)
Sealing/Lubrication	Oil or other liquid in pumping chamber.	Self-lubricating materials, non-contact design, tight clearances.
Process Gas Contamination	Potential for oil vapor/mist.	Minimal to none (oil-free operation).
Oil Maintenance	Regular oil changes, checks, disposal required.	None.
Typical Applications	General industrial, HVAC, rough/medium vacuum tasks.	Clean processes, labs, semiconductor, food, pharma.
Initial Cost	Generally Lower.	Generally Higher.
Environmental Impact	Oil mist exhaust, used oil disposal concerns.	Cleaner operation.

Closing Summary

Dry rotary vane pumps offer oil-free vacuum, crucial for clean applications. Their robust, simple design makes them reliable for various industries needing contamination-free operation, despite higher initial costs.
