Proper vacuum pump assembly requires precision and attention to detail at every stage. A single misaligned component can significantly impact performance and longevity.
The key assembly steps include: preparing components, installing the rotor and vanes, assembling the housing, setting proper clearances, adding lubrication systems, and final testing. Each stage requires specific tools and techniques to ensure optimal pump performance.
While automation has transformed manufacturing, vacuum pump assembly still relies heavily on skilled technicians who can make critical adjustments during the process.
What Are the Stages of Vacuum Pump Operation?

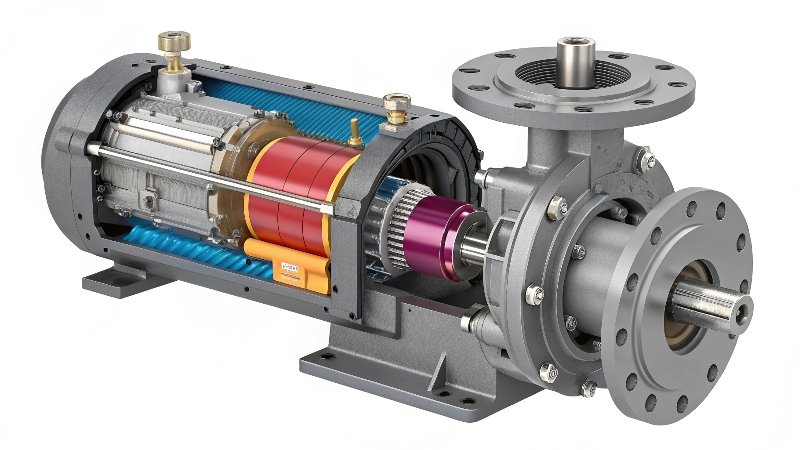

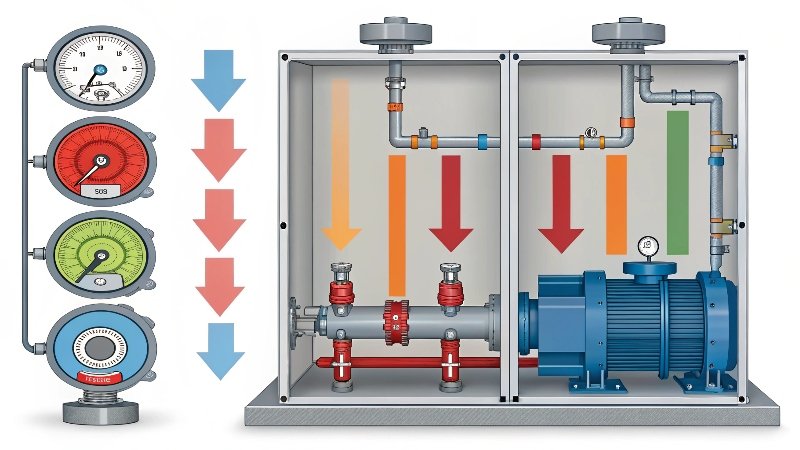

Understanding a vacuum pump's operational stages helps technicians identify potential issues during assembly and testing.
Vacuum pumps operate through three main stages: initial evacuation, transition to stable vacuum, and maintenance of target pressure. Each stage places different demands on pump components and requires proper assembly for smooth transitions.
Detailed Stage Characteristics
| Stage | Duration | Pressure Range | Critical Components | Common Issues |
|---|---|---|---|---|
| Initial Evacuation | 30-90 sec | Atmospheric to 100 mbar | Inlet valve, Rotor | Slow pump-down |
| Transition | 1-3 min | 100 to 1 mbar | Vanes, Bearings | Pressure fluctuations |
| Maintenance | Continuous | 1 mbar to 0.001 mbar | Seals, Exhaust system | Vacuum leaks |
Key Assembly Considerations:
- Proper vane seating affects transition stage
- Bearing alignment impacts all stages
- Seal quality determines maintenance performance
- Housing finish influences evacuation speed
How to Use a Vacuum Pump: Step-by-Step Guide
Correct operation begins with proper assembly and continues through daily use. Follow these steps to ensure optimal performance.
**1. Prepare the pump by checking oil levels and connections
- Start the pump and monitor initial evacuation
- Gradually open valves to reach target vacuum
- Monitor pressure and temperature during operation
- Shut down following proper sequence**
Critical Operation Checklist
-
Pre-Start Inspection
- Verify oil quantity and quality
- Check all connections and seals
- Ensure proper electrical supply
-
Startup Procedure
- Open bypass if available
- Start motor and observe rotation
- Listen for unusual noises
-
Operation Monitoring
- Record pressure readings
- Track bearing temperatures
- Note any vibration changes
-
Shutdown Process
- Close isolation valves first
- Allow proper cooldown
- Vent system if needed
Common Mistakes:
- Starting with closed valves
- Ignoring initial vibration
- Skipping warm-up period
- Abrupt shutdowns
What Does a Vacuum Pump Assembly Actually Do?
The assembly process transforms individual components into a functional system capable of creating and maintaining vacuum conditions.
A properly assembled vacuum pump creates pressure differentials by mechanically removing gas molecules from a sealed volume. The precision assembly ensures efficient operation, minimal leakage, and extended service life.
Assembly Impact on Performance
| Assembly Factor | Performance Effect | Quality Control Method |
|---|---|---|
| Vane Clearance | Affects vacuum level | Feeler gauge measurement |
| Bearing Preload | Determines vibration | Torque testing |
| Seal Alignment | Prevents leaks | Pressure decay test |
| Housing Finish | Impacts pumping speed | Surface roughness check |
| Rotor Balance | Reduces wear | Dynamic balancing |
Real-World Example:
A medical device manufacturer reduced pump failures by 40% after implementing:
- Torque-controlled bearing installation
- Laser-aligned vane placement
- Automated leak testing
- Vibration analysis for final inspection

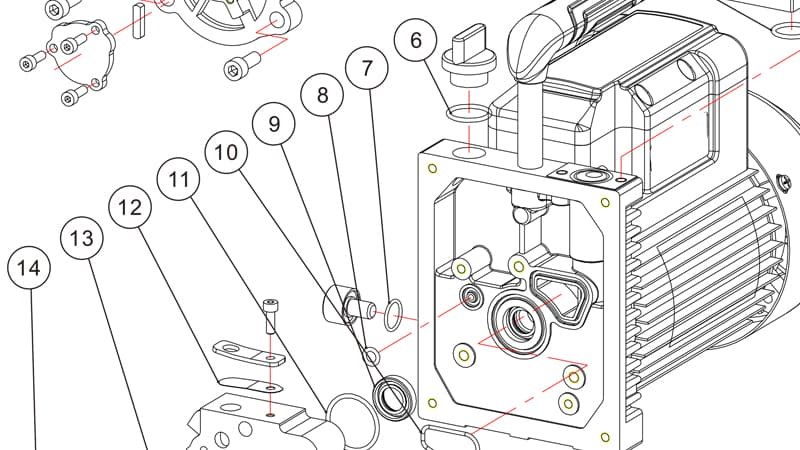

What Are the Core Components of a Vacuum Pump?
Understanding each component's role is essential for proper assembly and troubleshooting.
The main components include: housing, rotor, vanes, bearings, seals, inlet/outlet valves, and lubrication system. Each part must meet precise specifications and be installed correctly for optimal performance.
Component Specifications and Functions
-
Housing
- Material: Cast iron or aluminum
- Function: Contains all components
- Critical Spec: Surface finish < 0.8μm
-
Rotor
- Material: Hardened steel
- Function: Creates eccentric motion
- Critical Spec: Runout < 0.01mm
-
Vanes
- Material: Carbon composite
- Function: Creates chambers
- Critical Spec: Length ±0.05mm
-
Bearings
- Type: Precision ball bearings
- Function: Support rotation
- Critical Spec: ABEC-5 or better
-
Seals
- Material: Viton or PTFE
- Function: Prevent leaks
- Critical Spec: Compression set <10%
Assembly Tips:
- Clean all components before assembly
- Use proper lubrication during fitting
- Follow torque specifications exactly
- Verify each step before proceeding
Conclusion
Vacuum pump assembly remains a skilled trade requiring technical knowledge and hands-on experience. Proper component preparation, precise assembly techniques, and thorough testing are all essential for creating reliable, high-performance vacuum systems. While technology continues to advance, the human factor remains critical in achieving optimal results.
