For years, industrial plants struggled with noisy, inefficient air blowers. They consumed too much energy and demanded constant maintenance, creating a persistent problem for facility managers.
Screw blower technology has evolved from simple compression units to sophisticated, smart systems. This progression, driven by the bareshaft design and Variable Speed Drive (VSD) technology, delivers superior energy efficiency and control compared to traditional blowers like the Roots type.
The journey of the screw blower is a fascinating tale of engineering innovation. Let's explore how this technology developed and why its modern form is a game-changer for so many industries.
What Exactly is a Screw Blower and How Does It Work?
Imagine two rotors meshing together perfectly, like gears that never touch. This simple, brilliant mechanism is the heart of a screw blower's reliability.
A screw blower is a positive displacement compressor. It uses two intermeshing helical screws, or rotors, to trap and compress air. As the rotors turn, the air volume between them is progressively reduced, increasing pressure without pulsations.
The Core Mechanism Explained

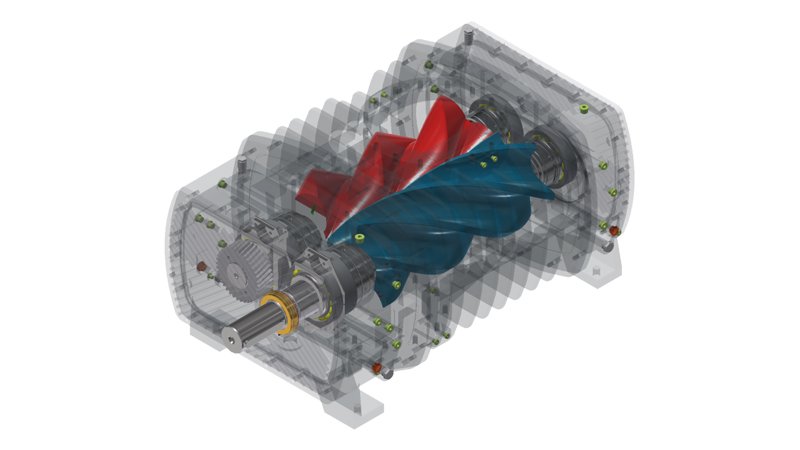

The magic lies in the precision of the rotors. A male rotor, with convex lobes, and a female rotor, with concave flutes, rotate in opposite directions within a tightly sealed housing. Their profiles are machined to incredibly fine tolerances.
The Compression Process
The process is continuous and smooth. It can be broken down into three distinct phases:
| Phase | Description |
|---|---|
| Intake | Air is drawn into the cavity as the rotors unmesh at the inlet side. |
| Compression | The rotors continue to turn, trapping the air and carrying it along the length of the screws. The space between the rotors and the housing gets smaller, compressing the air. |
| Discharge | The compressed air is pushed out through the discharge port at the end of the housing. |
This design is inherently balanced. It avoids the violent pulsations found in other technologies, leading to quieter operation and less vibration. From my experience sourcing these units, the quality of the rotor machining directly dictates the machine's longevity and efficiency. A poorly machined rotor will have internal leakage, wasting energy and reducing overall performance.

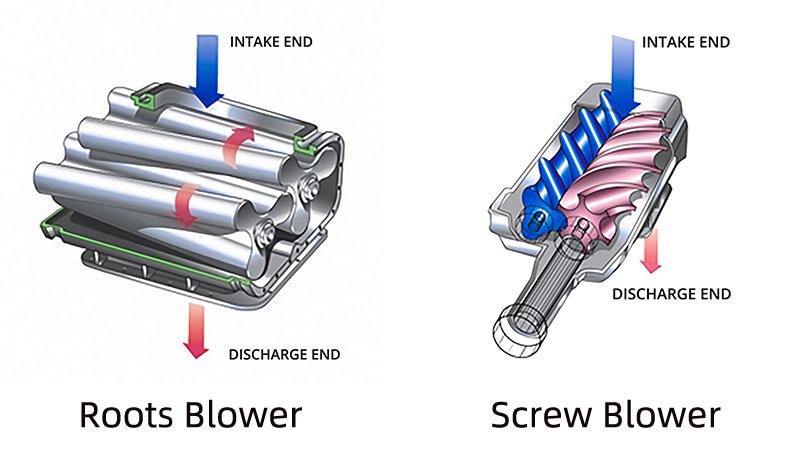

How Does a Screw Blower Differ from a Roots Blower?
Many people confuse these two technologies. While both are positive displacement blowers, their internal workings and performance are worlds apart.
The key difference is the compression method. A Roots blower is a constant-volume machine that traps and moves air with minimal internal compression, while a screw blower provides internal compression, leading to significantly higher energy efficiency.
Roots Blower: The Basics
A Roots blower uses two symmetrical, two or three-lobed impellers that rotate in opposite directions. Crucially, these impellers do not touch each other or the housing. They simply scoop a pocket of air at inlet pressure and push it to the outlet. The actual compression happens outside the blower, when this air meets the pressure in the discharge line. This is called "external compression."
Screw Blower: Internal Compression Advantage
As we discussed, the screw blower compresses the air inside the chamber before it is discharged. This internal compression is the source of its efficiency advantage. The machine does not have to fight against already-pressurized air at the outlet.
Let's look at the practical impacts:
| Feature | Roots Blower | Screw Blower |
|---|---|---|
| Efficiency | Lower, especially at higher pressures. | Higher, due to internal compression. |
| Noise Level | Typically louder, with a characteristic whine. | Quieter, smoother operation. |
| Heat Generation | Generates more heat due to inefficient compression. | Runs cooler. |
| Pulsations | Produces air pulsations. | Delivers a continuous, pulseless flow. |
I've seen many facilities upgrade from Roots to screw blowers primarily for the energy savings. The reduction in power consumption often pays for the new equipment in a surprisingly short time.
What Makes Modern Screw Blowers More Efficient Than Lobe Blowers?
It's important to clarify that "lobe blower" is another name for a Roots blower. The comparison is the same. The modern screw blower's superiority stems from two key innovations.
Modern screw blowers outperform lobe/Roots blowers primarily due to two features: the bareshaft design and integrated Variable Speed Drive (VSD). These innovations work together to eliminate transmission losses and match output precisely to demand, slashing energy use.
The Bareshaft Design

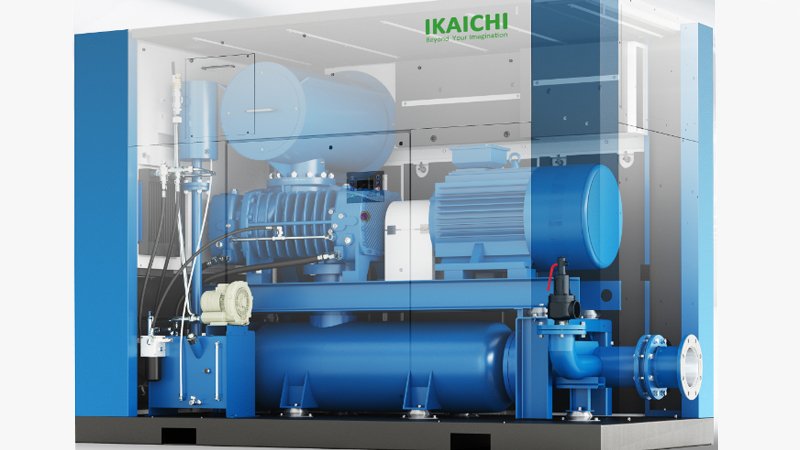

Traditional blowers often use a gearbox and couplings to connect the motor to the compression element. Every mechanical connection introduces energy loss through friction and heat. The bareshaft design is a game-changer. Here, the motor and the screw element are on a single, direct-coupled shaft. There is no gearbox, no belts, and no couplings. This eliminates all transmission losses, making the entire system more efficient and reducing the number of parts that can fail.
The Power of Variable Speed Drive (VSD)
This is the true key to modern efficiency. A fixed-speed blower runs at a constant RPM, regardless of the air demand. When less air is needed, it blows off excess air through a valve or modulates, wasting the energy already used to compress that air. A VSD screw blower is different. It intelligently adjusts the motor's speed (RPM) to produce exactly the amount of air required by the process. If demand drops by 20%, the motor speed drops, and energy consumption can drop by nearly 50%. This is not just a minor improvement; it's a fundamental shift in operation. In my trading company, we've observed that facilities with fluctuating demand achieve the greatest savings with VSD screw blowers. The technology turns the blower into a just-in-time air supplier, cutting massive amounts of wasted energy.
How Have Smart Systems Transformed Screp Blower Operation?
The evolution didn't stop at better mechanics. The integration of digital intelligence has turned these machines into connected assets.
Smart systems have transformed screw blowers into connected, data-driven assets. They enable remote monitoring, predictive maintenance based on real-time analytics, and system-wide optimization that goes beyond a single machine's performance.
From Reactive to Predictive Maintenance
Older blowers operated until they broke down, causing costly unplanned downtime. Smart screw blowers are equipped with a suite of sensors that monitor temperature, pressure, vibration, and motor load. This data is continuously analyzed. The system can alert you to a bearing that is showing early signs of wear or a filter that is nearing the end of its life. This allows you to schedule maintenance at a convenient time, preventing catastrophic failure. It's a shift from fixing problems to preventing them entirely.
System Integration and Optimization
The smartest installations don't just look at one blower. They connect multiple blowers and other components into a centralized control system. This system acts as a master controller, deciding the most efficient combination of machines to run at any given time. It can ensure that each blower operates in its most efficient load range, further maximizing energy savings. For my clients, this means not just buying a pump, but integrating a solution that provides actionable intelligence, reduces total cost of ownership, and brings a new level of control to their operations.
Final Thoughts
Screw blower technology has evolved into a smart, highly efficient solution, offering significant advantages over older blower designs for modern industrial applications.
