When a craft bakery’s freeze dryer started dumping water into its vacuum pumps, they faced weekly oil changes, corroded bearings, and $12,000/month in lost production. Their culprit? Ice buildup so severe it overwhelmed standard traps—a scenario far too common in pilot-scale lyophilization.
The 3 Hidden Water Ingress Pathways Sabotaging Your Runs

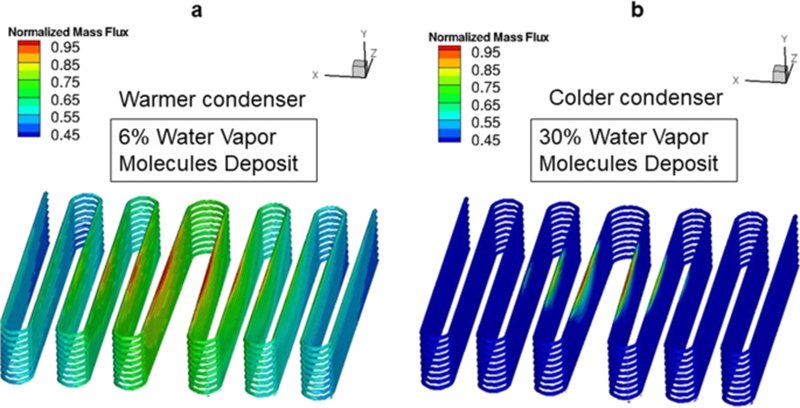

- Icebergs in the Cold Trap
Ice accumulates at 0.3 kg/h per m² of condenser surface when vapor flow exceeds 10 m/s. Standard traps fail when ice thickness surpasses 5mm, causing blowback. - Oil Emulsification
Water contamination turns vacuum pump oil into mayonnaise-like sludge within 72 hours. Each 1% water content increases wear rates by 18%, shortening pump life from 10,000 to 3,000 hours. - Vapor Backflow
During power dips, 150 mbar pressure spikes force moisture-laden air back into pumps. A single event can inject 500ml of water vapor.
Engineered Solutions Beating Conventional Traps
| Problem | Traditional Fix | Engineered Solution | Result |
|---|---|---|---|
| Ice overload | Manual defrosting | Thermoelectric baffles (-40°C) | 92% ice reduction |
| Oil contamination | Frequent changes | Polyglycol-based immiscible oils | 6x longer intervals |
| Pressure spikes | Check valves | Fast-acting pneumatic shutters | 50ms response time |
| Micro-leaks | Helium testing | Hydrogen tracer gas detection | 0.01 mbar·L/s sensitivity |
A pharmaceutical pilot plant reduced pump failures by 80% after installing hydrogen leak detectors that found a 0.2mm weld defect invisible to helium tests.
Root Causes and Holistic Approaches to Water Ingress
The root causes of water ingress can be broadly categorized into issues related to airflow dynamics and refrigeration/vacuum system performance. These encompass the direction and pathway of airflow within the system, the efficiency of the refrigeration unit, and the adequacy of temperature, pressure, and vacuum controls. Addressing water ingress involves a holistic approach that considers the interplay between these factors, including optimizing the refrigeration system’s configuration and ensuring the integrity of the system to prevent leaks.
The 3-Step Maintenance Protocol Most Labs Ignore
- Weekly Condenser Autopsy
- Measure ice density (should be <0.7 g/cm³)
- Check for stratified layers indicating temperature fluctuations
- Oil Viscosity Monitoring
- Use a Stabinger viscometer: Target 46 cSt at 40°C
- Discard if water content exceeds 0.5% (Karl Fischer titration)
- Seal Integrity Stress Test
- Cycle chamber from 1,000 mbar to 0.001 mbar 10x
- Pressure rise <0.01 mbar/min indicates airtightness
Case Study: From Crisis to Control
Problem: A mushroom powder producer faced daily pump failures during 72-hour cycles.
Root Cause: 23°C fluctuations in condenser temperature caused ice shedding.
Solution:
- Installed PID-controlled glycol jackets (±0.5°C stability)
- Upgraded to hydrophobic ceramic-coated rotors in pumps
Outcome: 14-month pump lifespan with zero water ingress.
