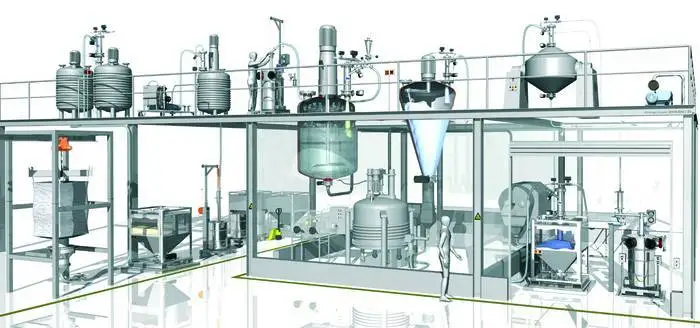

Vacuum conveying has emerged as a leading technology for material handling, recognized globally for its efficiency. This method leverages negative pressure to move various bulk solids seamlessly through an enclosed pipeline, presenting a host of benefits over traditional techniques.
Why Choose Vacuum Conveying?
This technology stands out for its numerous advantages:
- Flexibility in Pipeline Configuration: The enclosed pipeline system allows for highly customizable routing, enabling efficient integration with existing production workflows and plant layouts.
- Enclosed and Dust-Free Operation: By maintaining the material flow within a closed system, vacuum conveying prevents the release of dust or particulates into the surrounding environment. This is particularly important for handling hazardous, toxic, or high-purity materials.
- High Conveying Efficiency: Vacuum conveying can transport bulk solids at high throughput rates, reducing the need for intermediate packaging, loading, and unloading steps, thereby lowering overall handling costs.
- Preservation of Material Quality: The enclosed system protects the conveyed materials from environmental factors such as moisture, contamination, and cross-mixing, ensuring the integrity of the transported products.
- Versatility in Processing: Vacuum conveying systems can integrate multiple processing operations, such as weighing, mixing, or size reduction, during the transportation process, enhancing production efficiency.
- Ease of Maintenance and Automation: Vacuum conveying systems are generally straightforward to maintain and can be readily automated, reducing labor requirements and improving system reliability.
- Long-Distance Capabilities: Vacuum conveying can transport materials over considerable distances, from centralized storage or production areas to multiple remote destinations, enabling flexible and decentralized material handling.
Key Components of Vacuum Conveying Systems
Vacuum conveying systems comprise several key elements:
- Suction Nozzle Assembly: The suction nozzle is the interface between the vacuum system and the material source, designed to efficiently capture and entrain the bulk solids into the airflow.
- Separator: The separator, often a cyclone or filter-based unit, separates the conveyed material from the airflow, ensuring the material is collected and the exhaust air is cleaned before discharge.
- Dust Collector: The dust collector, typically a bag filter or cartridge filter system, removes any remaining fine particulates from the exhaust air, meeting environmental regulations and protecting the vacuum pump.
- Vacuum Pump: The vacuum pump is the heart of the system, generating the negative pressure required to convey the materials through the pipeline. Common vacuum pump types include oil-sealed rotary vane, water-ring, and rotary claw pumps.
- Valves and Piping: The valves and piping network, including diverter valves, control the material flow and routing within the vacuum conveying system.
Selecting the Right Vacuum Pump
The choice of vacuum pump technology is crucial in determining the overall performance and efficiency of the vacuum conveying system. The three main vacuum pump types used in these applications are:
- Oil-Sealed Rotary Vane Pumps: These pumps offer high suction capacity and can handle a wide range of materials. They require regular oil changes and maintenance to ensure optimal performance.
- Water-Ring Pumps: Water-ring pumps are well-suited for handling moist or sticky materials, as the water seal helps prevent material buildup. They require a continuous water supply and regular maintenance of the water circuit.
- Rotary Claw Pumps: Rotary claw pumps are oil-free, dry-running vacuum pumps that provide high suction power and are relatively low-maintenance. They are often preferred for applications with strict cleanliness requirements.
The selection of the appropriate vacuum pump technology depends on factors such as the material properties, conveying distance, required suction capacity, and system operating conditions.
Diverse Applications of Vacuum Conveying
Vacuum conveying technology finds widespread use across a variety of industries, including:
- Food Processing: Handling of powdery and granular food ingredients, such as milk powder, flour, starch, grains, and food additives.
- Fine Chemicals: Conveying of pigments, dyes, coatings, carbon black, titanium dioxide, ceramic powders, and other specialty chemicals.
- Agrochemicals and Minerals: Transportation of fertilizers, pesticides, mineral powders, and mining products.
- Construction Materials: Handling of cement, clays, sands, limestone, and other building materials.
- Pharmaceuticals: Conveying of active pharmaceutical ingredients, excipients, and other sensitive powders in a controlled environment.
- Plastics and Polymers: Handling of plastic pellets, powders, and additives in polymer processing facilities.
The versatility and efficiency of vacuum conveying make it a preferred material handling solution across a broad spectrum of industries, from food and chemicals to construction and manufacturing.
