You've seen stunning curved furniture and dreamed of making your own, but the process seems impossibly complex. The thought of dozens of clamps, uneven pressure, and failed glue-ups is enough to stop you before you even start.
A woodworking vacuum press lets you bend wood by using the immense power of atmospheric pressure to provide flawless, even clamping. It eliminates the gaps and weak spots common with mechanical clamps, turning a difficult process into a repeatable success.
From my years working with vacuum technology, I find this application to be one of the most elegant. It's where pure physics meets fine craftsmanship. Many aspiring woodworkers think they need a mountain of expensive clamps to create curves, but the secret is much simpler and far more powerful. You're not using the pump to "suck" the wood into a shape; you're using it to remove the air so that the atmosphere itself becomes your perfect, all-encompassing clamp. Let's break down how you can harness this power.
Why does a vacuum bag clamp so well?
It seems like a flimsy bag couldn't possibly provide enough force. You're used to cranking down on metal clamps, so how can a bag and a pump be stronger?
The bag itself provides no pressure. It's the atmosphere that does the work. By removing the air from inside the bag, you allow the full weight of the air outside—about 14.7 psi—to press down on every square inch of your project.
Let's put that into real-world numbers. At sea level, a good vacuum pump can achieve a vacuum level of about 25 inches of Mercury ("Hg), which translates to roughly 12.5 psi. In metric units, this means reducing the absolute pressure inside the bag from atmospheric (~101 kPa) to below 17 kPa (kilopascals). That's nearly 1,800 pounds of perfectly even clamping force over a single square foot. It's physically impossible to replicate this with traditional clamps.
| Clamping Method | Pressure Distribution | Common Problems |
|---|---|---|
| Mechanical Clamps | Concentrated at specific points | Gaps between clamps, uneven glue squeeze-out, damaged wood surface |
| Vacuum Press | Perfectly uniform across the entire surface | None. The pressure finds every curve and contour flawlessly. |
What is the process for bending wood with a vacuum?
You understand the physics, but how do you apply it? The process is a methodical and rewarding journey from flat boards to a beautiful, permanent curve.

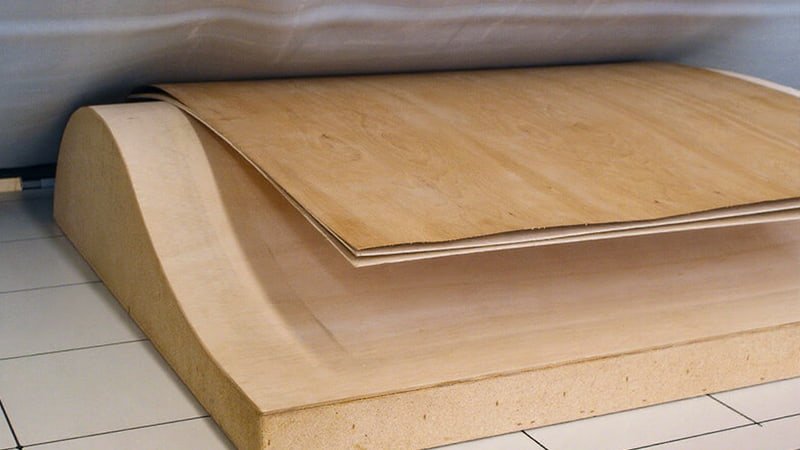

You don't bend a single thick board. The process involves laminating multiple thin, flexible wood strips with glue around a form. The vacuum press acts as the clamp that holds these strips in place until the glue cures, locking in the shape.
From my experience helping workshops get set up, I've refined the process into four key stages:

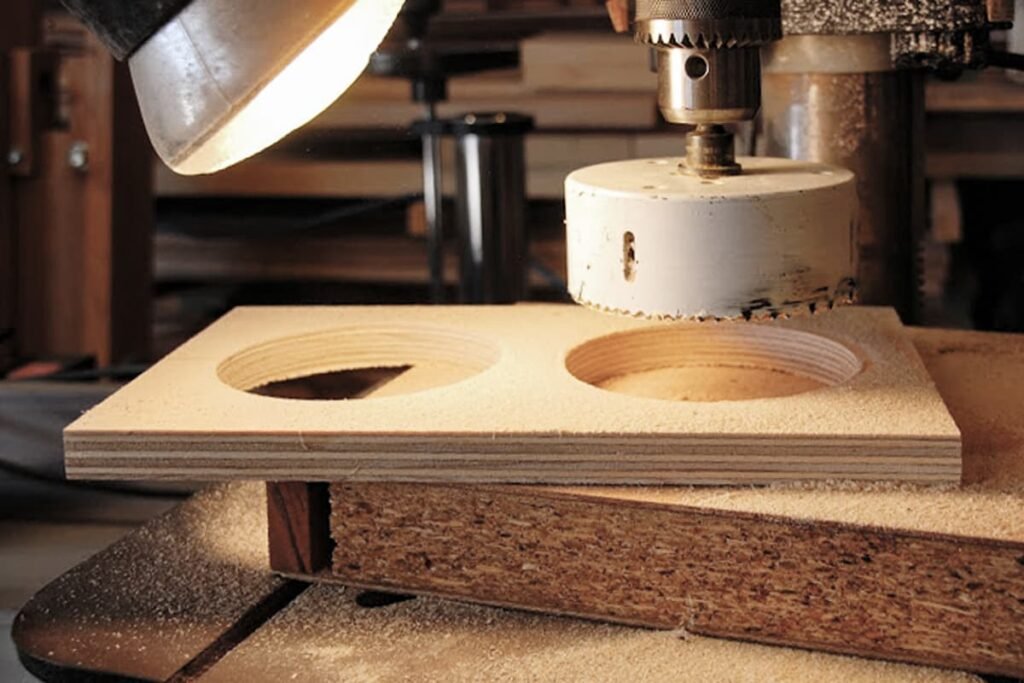

- Build the Form: This is the solid mold that defines your curve. It needs to be strong enough to resist the immense vacuum pressure. Stacked and glued layers of MDF or particleboard are a common and effective choice.

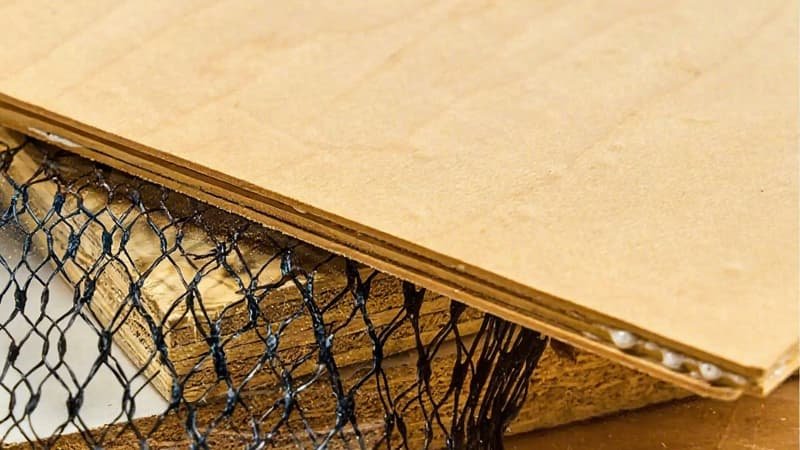

- Mill the Laminations: Re-saw your project wood into thin strips, typically between 1/16" and 1/8" thick. The thinner the strips, the more easily they will bend without breaking.

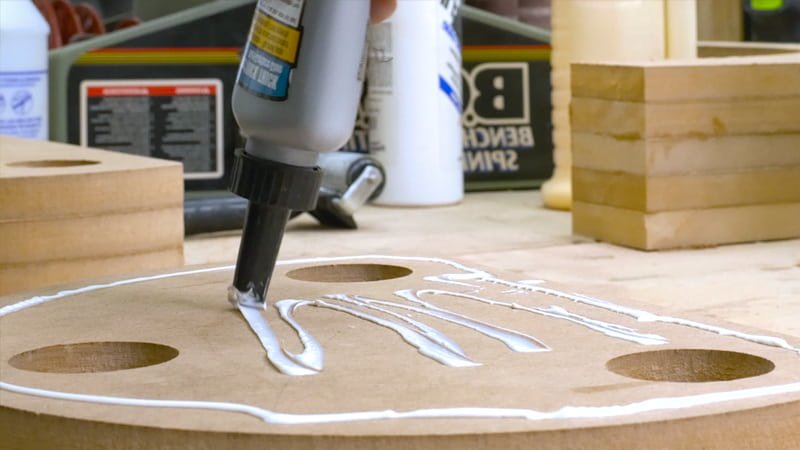

- The Glue-Up: This is the most time-sensitive step. Working quickly, apply an even layer of glue to one face of each lamination strip (except the very top one). A slow-setting glue like a plastic resin or epoxy is often recommended to give you more working time.

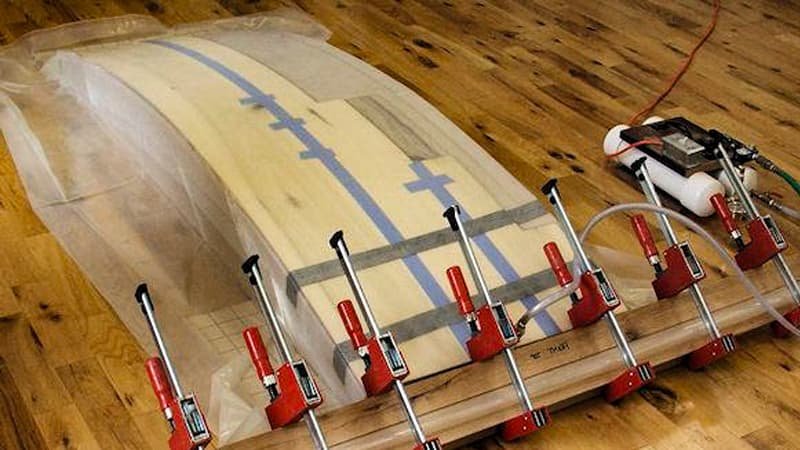

- Press and Wait: Stack the glued laminations onto your form, slide the entire assembly into the vacuum bag, seal it, and turn on the pump. Let the pump run until it achieves its maximum vacuum, and then leave the project under pressure until the glue is fully cured—I always recommend a minimum of 24 hours.
Why does the bend become permanent?
You've successfully bent the wood, but you're worried it will spring back flat as soon as you release the pressure. Why does the shape hold?
The bend becomes permanent because the glue cures under immense, even pressure, creating rigid bonds between the wood strips that are stronger than the wood's own natural tendency to straighten out. This effectively locks the new shape in place.
The enemy of any wood bending project is "springback." This is the small amount the wood will un-bend after being released from the clamps. While some minor springback can occur even with vacuum pressing, it is greatly minimized because of the quality of the glue-up.
- The Power of Glue: Modern wood glues, when cured under the perfect pressure of a vacuum bag, create a bond that is physically stronger than the wood fibers themselves. This rigid glue line is what holds the curve.
- Even Pressure is Key: Because the vacuum press applies pressure perfectly evenly across every square inch of your project, every glue joint is perfect. There are no weak spots caused by uneven clamping, which is the main cause of delamination and excessive springback in projects using traditional clamps.
What are the most common mistakes beginners make?
You're ready to start, but knowing what can go wrong is just as important as knowing the right steps. Avoiding these common pitfalls will save you from a frustrating and sticky mess.
The most common mistakes are a leaking bag, using the wrong glue, and rushing the process. A single pinhole leak can ruin the press, and the wrong glue can either set too fast or create a weak bond.
I've helped troubleshoot many failed pressings, and they almost always come down to one of these issues:
- Bag Leaks: Even a tiny pinhole from a sharp corner on your mold will prevent the pump from achieving a full vacuum. Always check your bag for leaks before a big glue-up and protect it by rounding over all sharp edges on your form.
- Wrong Glue Choice: Using standard yellow wood glue is a recipe for disaster. It sets far too quickly, and you'll have a half-hardened mess before you can even seal the bag. You need a glue with a longer "open time," like a plastic resin, epoxy, or a specialized slow-setting PVA.
- Not Enough Glue: Don't be shy with the glue. An even, consistent coat on every lamination is critical. A "starved" joint with too little glue will be a weak point that could fail later.
- Rushing the Cure: The project feels solid after a few hours, so it's tempting to take it out. Don't. Glue needs time to reach its maximum strength. Releasing the pressure too early is the #1 cause of excessive springback. Give it the full 24 hours.
What kind of vacuum pump do I really need?
The pump is the engine of the whole system. Choosing the wrong type can lead to a failed press and wasted materials. This is one area where you can't compromise.

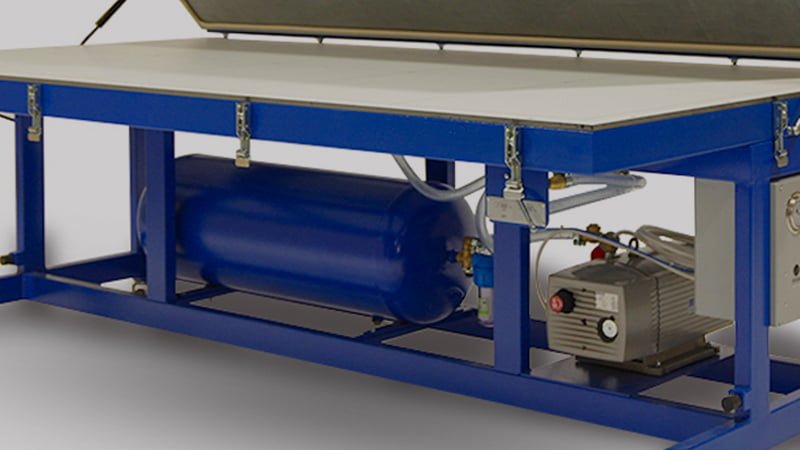

The best pump for a vacuum press is a continuous-duty, oil-free model, typically a dry rotary vane or a piston pump. It must be able to achieve and hold a steady vacuum of at least 21" Hg (a residual pressure of about 30 kPa) for many hours without overheating.
This is where my expertise with vacuum technology is most critical for woodworkers. Not all pumps are created equal for this task.
- Avoid HVAC Pumps: The standard oil-sealed pumps used for servicing air conditioners are not designed for continuous duty. Running one for the hours required for a glue-up can cause it to overheat and spray a fine oil mist from its exhaust.
- Dry Rotary Vane & Piston Pumps: These are the professional choices. Because they run dry without oil, they can run for hours on end without issue and produce a very strong, steady vacuum. I recommend a pump that can achieve at least 25" Hg (below 17 kPa absolute pressure) to ensure strong clamping pressure.
- Venturi Pumps: These use an air compressor to generate vacuum. While they can work, I generally advise against them. They are incredibly noisy (due to the constantly running compressor) and are very inefficient.
Final Thoughts
A woodworking vacuum press is not magic; it's a brilliant application of physics. By understanding the process, avoiding common mistakes, and using the right pump, you can achieve clamping perfection and create stunning curved projects that were previously out of reach.
