Choosing the wrong vane material can literally destroy your vacuum pump from the inside out. This small mistake leads to poor performance, costly downtime, and catastrophic failure.
The right vane depends entirely on whether your pump is oil-lubricated or dry-running. Durable, high-strength fiber vanes are for oil-lubricated pumps. Softer, self-lubricating carbon-graphite vanes are required for dry-running pumps, as they are designed to wear down safely.
In my 10 years in the vacuum industry, I’ve seen that the smallest parts can cause the biggest problems. The vanes in your rotary pump are a perfect example. They look simple, but they are a highly engineered component. The material they are made from is not a trivial detail. Using a tough fiber vane in a dry-running pump that needs a soft carbon vane is one of a handful of mistakes that can instantly ruin your equipment. Understanding the fundamental difference between these two is the key to a long, productive life for your pump.
What are vanes and what is their purpose in a pump?
Your pump is making noise but isn’t pulling a deep vacuum. You might suspect a major failure, but the cause is often a set of small, moving blades inside: the vanes.

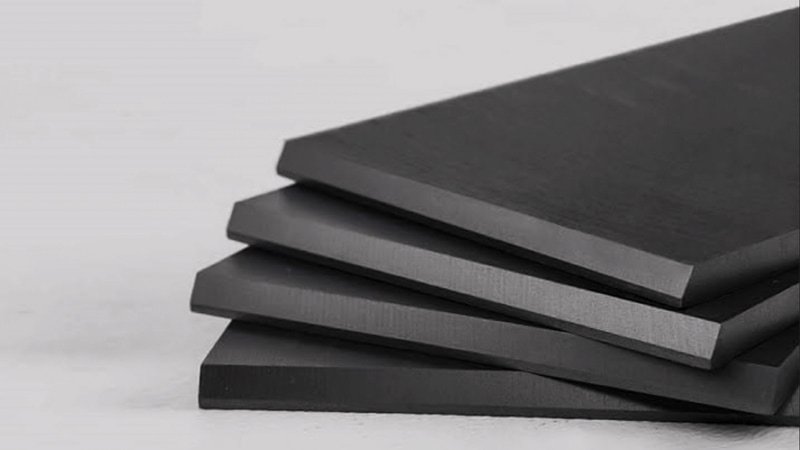

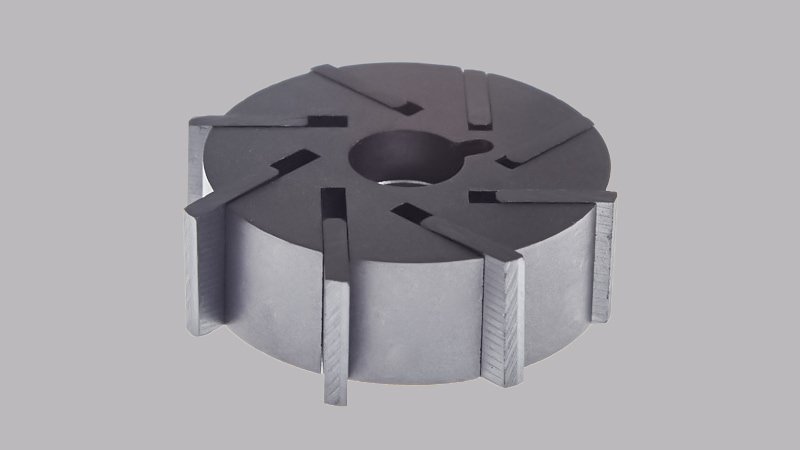

Vanes are rectangular blades that slide in and out of a spinning rotor. Their purpose is to create sealed chambers of expanding and contracting volume, which traps, compresses, and then expels air molecules out of the pump to create a vacuum.
The genius of a rotary vane pump is in its mechanical simplicity. The vanes are the only truly critical moving parts that make the whole process possible. They are the heart of the pump’s ability to create a vacuum.
The Pumping Cycle
The process is a continuous loop of three simple steps, all made possible by the vanes creating a tight seal against the pump’s inner wall:
- Intake: An offset rotor spins inside the pump housing. As it spins, the vanes slide outward, creating a chamber with increasing volume. This expansion creates low pressure, drawing air from the connected system into the pump.
- Compression: As the rotor continues its rotation, the chamber begins to shrink in volume. This compresses the trapped air molecules.
- Exhaust: Finally, the fully compressed air is pushed out through an exhaust valve. The cycle then repeats thousands of times per minute.
The seal created by the vane tip is everything. If that seal is weak due to a worn or incorrect vane, the pump cannot efficiently compress the air, and its ability to reach a deep vacuum is lost.
Do dry and oil-lubricated pumps use different vanes?
You see two vanes that look similar in shape. It’s tempting to think they are interchangeable, but using the wrong one in your pump will cause immediate and severe damage.
Yes, they use completely different types of vanes, and mixing them up is catastrophic. Oil-lubricated pumps use hard, durable fiber vanes. Dry-running pumps require softer, self-lubricating carbon-graphite vanes designed for controlled wear.
This is the single most important concept to understand. The presence or absence of oil completely changes the material science required for the vane. I’ve seen customers destroy expensive dry-running pumps by installing the wrong vanes, thinking they were upgrading to something more "durable."
| Vane Type | Material Composition | Key Function | Lifespan |
|---|---|---|---|
| Fiber Vanes (for Oil Pumps) | Carbon or glass fiber in phenolic resin | Purely mechanical sealing and strength | Very long (years) |
| Carbon Vanes (for Dry Pumps) | Carbon-Graphite Blend | Sealing and Self-Lubrication (sacrificial) | Limited by wear (hours) |

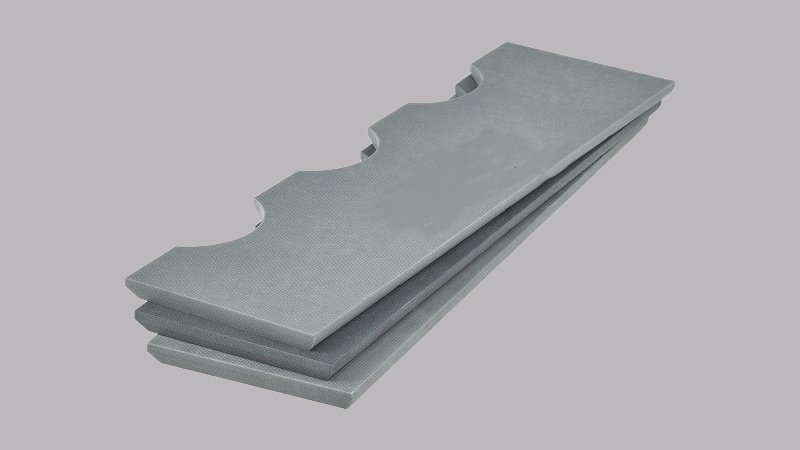

Fiber Vanes for Oil-Lubricated Pumps
In an oil-flooded pump, the oil lubricates and seals. Therefore, the vane doesn’t need to lubricate itself. Its only job is to be incredibly strong and dimensionally stable to maintain a good seal for a very long time. These "fiber vanes" are composites, often made with carbon or glass fibers embedded in a tough resin. They are extremely durable and are typically only replaced if they are physically damaged (chipped or cracked).
Carbon Vanes for Dry-Running Pumps
In a dry pump, there is no oil. If you used a hard fiber vane, it would quickly generate immense heat and friction, destroying both the vane and the expensive pump housing. Instead, dry pumps use a composite vane containing graphite. The graphite acts as a solid lubricant, wearing away slowly to create a fine dust that coats the inside of the pump. The vane is designed as a sacrificial wear item. Its purpose is to wear down to protect the far more expensive pump components.
How can I tell if my pump vanes are worn out?
Your dry pump’s performance is slowly degrading. You worry about a major overhaul, but the fix might be simple routine maintenance if you catch it in time.

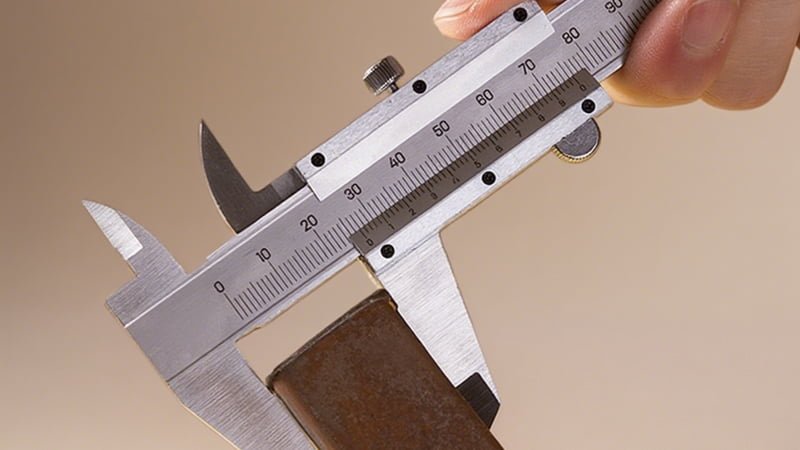

For dry pumps, you must replace the vanes when they wear down to a specific minimum width. For oil pumps, fiber vanes are replaced less often, usually only when they show signs of chipping, cracking, or other physical damage.
Knowing when to replace vanes is key to preventive maintenance. For oil pumps, it’s a simple visual inspection during a rebuild. For dry pumps, it’s a critical and more frequent service item that you must monitor by measuring the vane’s width and comparing it to the manufacturer’s specification.
Typical Replacement Intervals
- Fiber Vanes (Oil Pumps): There is no fixed time-based replacement interval. These vanes are incredibly durable and should be inspected for chips or cracks during any major pump service. They often last for tens of thousands of hours, and sometimes the life of the pump, if the oil is kept clean.
- Carbon Vanes (Dry Pumps): As a general reference, the lifespan of carbon-graphite vanes in a dry-running pump can range from 10,000 to 20,000 operating hours. However, this is only an estimate. The actual interval depends heavily on the specific pump model, the operating pressure, and the application. Always consult your pump’s manual for the manufacturer’s recommended replacement schedule and exact wear limits.
Why Professional Replacement Is Recommended
Replacing vanes in a dry pump isn’t just about swapping the old parts for new ones. Over thousands of hours of operation, the pump housing, filters, and silencers become filled with the fine carbon-graphite dust from the worn vanes. This dust must be meticulously cleaned out before installing new vanes. If you fail to do this, the abrasive old dust will cause your new vanes to wear out extremely quickly. Because this cleaning process is so critical, I always recommend that this maintenance be performed by an experienced technician to ensure a long service life from the new set of vanes.
Closing Summary
Your pump’s performance and lifespan depend on using the right vanes. Match the vane material—durable fiber for oil pumps, sacrificial carbon for dry pumps—to your equipment to ensure reliability.
