Gas ballast revolutionized vacuum pump operation by solving one of the most common failure causes – fluid contamination. This simple yet brilliant feature extends pump life dramatically in humid conditions.
Gas ballast allows controlled air admission into the compression chamber, preventing vapor condensation and oil contamination. While it slightly reduces ultimate vacuum, it protects pumps from water damage and maintains stable performance in challenging environments.
Many manufacturers now ship single-stage pumps with gas ballast enabled by default – a testament to its importance. I’ve seen pumps last 3x longer simply by proper gas ballast use.
Should Gas Ballast Be Open or Closed on a Vacuum Pump?
The gas ballast setting significantly impacts pump performance and protection. Choosing the right position depends on your specific application requirements.
Keep gas ballast open when pumping vapors or in humid environments to prevent oil contamination. Close it when you need maximum vacuum levels and are handling dry gases only. Always monitor pump exhaust for visible
Gas Ballast Operation Guide
| Condition | Recommended Setting | Benefits | Drawbacks |
|---|---|---|---|
| Humid environment | Open | Prevents oil emulsification | Higher ultimate pressure |
| Vapor handling | Open | Removes condensable vapors | Reduced pumping speed |
| Dry gas pumping | Closed | Better vacuum levels | Risk of vapor accumulation |
| Initial pump-down | Open | Protects during warm-up | Slower evacuation |
| High vacuum work | Closed | Maximum performance | Requires dry conditions |
Key Indicators for Adjustment:
- Milky oil = need gas ballast
- Visible exhaust vapor = keep open
- Poor ultimate vacuum = try closing
- Frequent oil changes = use more gas ballast
What Is the Purpose of Providing Gas Ballast in a Two Stage Rotary Vacuum Pump?
Two-stage pumps benefit from gas ballast just as much as single-stage models, though the implementation differs slightly due to their design.
In two-stage pumps, gas ballast primarily protects the high-pressure (second) stage where vapor condensation risk is greatest. It maintains oil quality while still achieving better vacuum than single-stage pumps with ballast open.
Two-Stage vs Single-Stage Gas Ballast Comparison
| Characteristic | Single-Stage | Two-Stage |
|---|---|---|
| Ballast Location | Compression chamber | Second stage |
| Typical Pressure With Ballast | 10-50 mbar | 1-10 mbar |
| Vapor Handling | Good | Excellent |
| Oil Protection | Essential | Critical |
| Performance Impact | Significant | Moderate |
Technical Advantages:
- Second stage runs hotter = better vapor expulsion
- First stage maintains good flow
- Combined effect protects both stages
- Still reaches usable vacuum levels
How Long to Leave Gas Ballast on a Vacuum Pump?
Gas ballast duration depends on operating conditions rather than fixed time periods. Proper timing ensures protection without unnecessary performance sacrifice.
Leave gas ballast open: 30 minutes after vapor exposure, during humid conditions, or whenever exhaust shows visible mist. Close it only when handling dry gases and needing maximum vacuum, monitoring oil condition regularly.
Gas Ballast Duration Guidelines
| Application | Recommended Duration | Special Considerations |
|---|---|---|
| Initial pump-down | First 30 minutes | Protects during warm-up |
| Humid environments | Continuous | Prevents water accumulation |
| Solvent evaporation | Entire process + 30 min post | Ensures complete removal |
| Dry gas systems | Closed after warm-up | Maximizes vacuum |
| Intermittent use | Open during cooldown | Prevents condensation |
Practical Tips:
- Watch exhaust during process changes

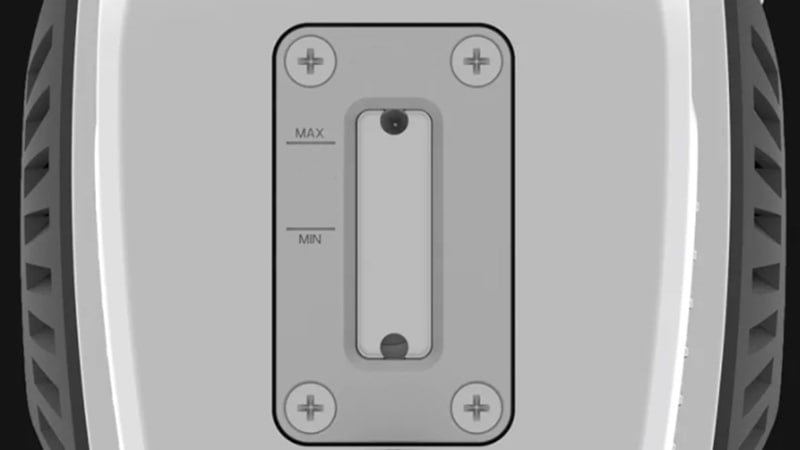

- Check oil clarity weekly
- Document settings for repeat processes
- Adjust based on seasonal humidity
- When in doubt, leave it open
Conclusion
Gas ballast represents one of vacuum technology’s most practical innovations, transforming pumps from vapor-sensitive devices into robust systems. While it requires understanding and proper use, the protection it provides far outweighs the small performance trade-off. Modern pumps increasingly build in smart gas ballast features, but operator awareness remains essential for optimal results.
