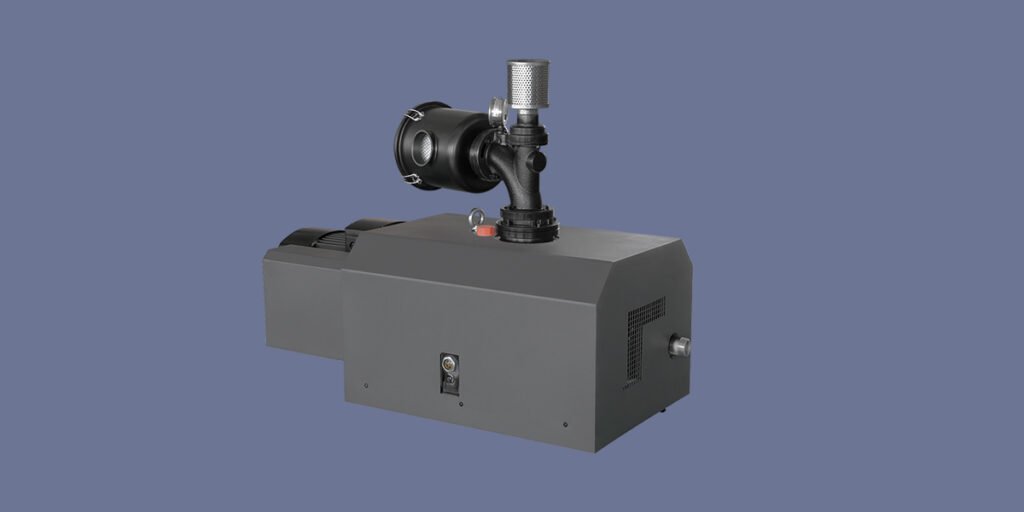

Dry claw vacuum pumps are quietly transforming industries that demand clean, oil-free vacuum solutions. But when heavy workloads push these pumps to their limits, heat becomes their biggest enemy. Enter water cooling—a design choice that solves thermal challenges while boosting performance. Let’s unpack how this technology keeps dry claw vacuum pumps running smoothly, even in the toughest conditions.
How Does Water Cooling Work in a Dry Claw Vacuum Pump?
To understand the benefits, we first need to see how water cooling integrates into the pump’s design.
Unlike air-cooled systems that rely on fans or heat sinks, water-cooled dry claw pumps circulate coolant through channels embedded in the pump housing. These channels absorb heat generated during compression and transport it away from critical components. The coolant—often a water-glycol mixture—flows through a closed-loop system connected to an external heat exchanger, which dissipates the heat into the environment.
This setup targets heat precisely where it forms: near the rotors and compression chambers. By maintaining stable temperatures, water cooling prevents performance drops caused by overheating.
Five Reasons Water Cooling Outperforms Air Cooling
Water cooling isn’t just a luxury—it’s a game saver for applications where reliability matters. Here’s why:
- Consistent Performance Under Heavy Loads
Dry claw pumps excel in continuous-duty scenarios like chemical processing or semiconductor manufacturing. However, prolonged operation can raise internal temperatures above 120°C, risking thermal expansion of rotors and housing. Water cooling keeps temperatures between 70–90°C, ensuring tight tolerances stay intact. For example, a pump handling solvent vapors in a pharmaceutical plant might run 24/7 without throttling—a feat air-cooled models struggle to match. - Lower Noise Levels
Air-cooled pumps rely on fans that add noticeable noise, often exceeding 75 decibels in industrial settings. Water cooling eliminates this need, reducing operational noise by up to 40%. In labs or food packaging facilities where quiet operation matters, this difference can improve workplace comfort. - Longer Seal and Rotor Life
Heat accelerates wear on dynamic seals and rotor coatings. In a water-cooled system, lubricant-free seals endure less thermal stress, extending service intervals by 30–50%. One automotive paint shop reported replacing seals every 18 months instead of every 10 months after switching to water-cooled units. - Energy Efficiency Gains
Cooling water requires less energy than powering fans or oversized motors to compensate for heat-related efficiency losses. Tests show water-cooled dry claw pumps consume 15% less electricity during high-load cycles compared to air-cooled equivalents. - Adaptability to Harsh Environments
In dusty or explosive atmospheres, air-cooling systems risk pulling contaminants into the pump. Water-cooled designs seal sensitive components, making them ideal for woodworking dust extraction or chemical plants handling flammable gases.
Where Does Water Cooling Make the Most Impact?
Not all applications need water cooling, but these scenarios benefit significantly:
- High Vapor Loads: Condensing water vapor in freeze-drying processes generates substantial heat. Water cooling prevents vapor re-evaporation inside the pump.
- Aggressive Gases: Chlorine or hydrogen chloride gases accelerate corrosion at high temperatures. Cooler operation slows chemical reactions.
- Space Constraints: Compact systems, like inline packaging machines, lack airflow for effective air cooling.
Addressing Common Concerns About Water Cooling
Some engineers hesitate to adopt water cooling due to perceived complexity. Let’s clarify:
Myth 1: Water Cooling Requires Complicated Plumbing
Modern systems use standardized fittings and compact heat exchangers. A typical setup needs only two coolant ports and a small circulation pump—no elaborate networks.
Myth 2: Risk of Leaks Damages Equipment
High-quality seals and pressure-testing during manufacturing minimize leakage risks. One glass coating facility ran water-cooled pumps for six years without a single coolant-related failure.
Myth 3: Maintenance Is Time-Consuming
Routine checks involve verifying coolant levels and inspecting hoses annually—tasks taking under 30 minutes. Contrast this with frequent fan cleanings or rotor replacements in air-cooled units.
Real Data From the Field
A European solar panel manufacturer compared two identical dry claw pumps—one air-cooled, one water-cooled—in their cadmium telluride coating line:
Metric | Air-Cooled | Water-Cooled |
Average Temperature | 118°C | 82°C |
Energy Use (kWh/day) | 48 | 41 |
Seal Replacement | 8 months | 14 months |
The water-cooled model reduced downtime by 22% and cut annual energy costs by €1,700.
Choosing the Right Cooling Strategy
Water cooling adds upfront costs but pays off in demanding environments. Consider it if:
- Your process runs above 60% capacity for over 8 hours daily
- Ambient temperatures exceed 35°C
- Noise reduction is a priority
For lighter duties, like intermittent use in research labs, air cooling remains cost-effective.
