Do frequent breakdowns, oil contamination, or costly repairs plague your vacuum pumps operations? From semiconductor manufacturing to pharmaceutical labs, vacuum pumps are only as reliable as their filtration systems. Poorly chosen or maintained filters lead to equipment failure, safety risks, and environmental violations. This guide cuts through the noise, offering actionable insights from industry engineers and real-world case studies. Learn how to select, maintain, and optimize filters to protect your pumps, people, and bottom line.

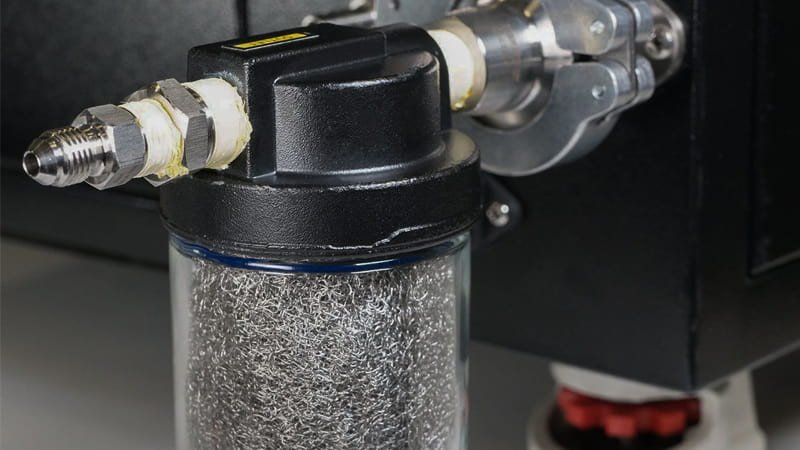

Inlet Filters: The First Line of Defense
Why They Matter:
Inlet filters are non-negotiable for oil-sealed mechanical pumps (e.g., rotary vane, piston pumps) used in vacuum furnaces, analytical instruments, and light industrial processes. Without them, contaminants like dust, oil vapor, and chemical residues flood pumps, accelerating wear by 50–70%.
> Foreline Traps: Stopping Oil Vapor Backflow
How They Work:
Mechanism: At pressures below 0.1 Torr, oil vapor molecules travel ballistically, risking backflow into sensitive systems (e.g., mass spectrometers). Foreline traps use molecular sieves (3Å pore size) and activated alumina to adsorb 99% of oil and water vapor.
Materials Matter:
Molecular Sieves: Ideal for high-vapor-load applications (e.g., vacuum coating). Regenerate at 250°C every 6–12 months.
Activated Alumina: Better for humid environments (e.g., food freeze-drying), lasting 8–10 months before replacement.
Failure Example: A lab using electron microscopes saw 30% downtime due to column contamination. Installing dual-stage foreline traps (sieves + alumina) reduced incidents by 90%.
> Catchpots: Capturing Solids in Turbulent Phases
Design & Application:
Empty Vessel Strategy: During initial pump-down, turbulent gas flow carries debris (e.g., metal shavings in CNC machining). Catchpots use cyclonic separation to drop 80–90% of particles >10µm via abrupt directional changes.
Maintenance Tip: Clean catchpots weekly in high-debris industries (e.g., powder metallurgy) to prevent clogging.
> Dust Traps: Precision Particle Removal
Filter Types by Contaminant Load:
Low Load (e.g., labs): Pleated polyester (5µm retention) – replace every 3–6 months.
High Load (e.g., ceramics): Stainless steel mesh (reusable, 20µm retention) – wash monthly with ultrasonic cleaners.
Pro Tip: Pair with a differential pressure gauge to monitor loading and avoid unexpected shutdowns.
Dust traps are used to capture solid contaminants within the vacuum system. They come with two types of elements: pleated paper or polyester for low levels of contaminants, and metal mesh or wool elements for higher levels.
> Vapor Traps
Key Uses:
Freeze-Drying: Traps act as condensers, capturing -50°C water vapor before it floods pumps.
Chemical Labs: Activated charcoal adsorbs solvents (e.g., acetone, toluene) – 1kg charcoal handles ~200L vapor.
Failure Risk: Overloaded charcoal releases trapped vapors. Replace every 3 months in heavy-use environments.

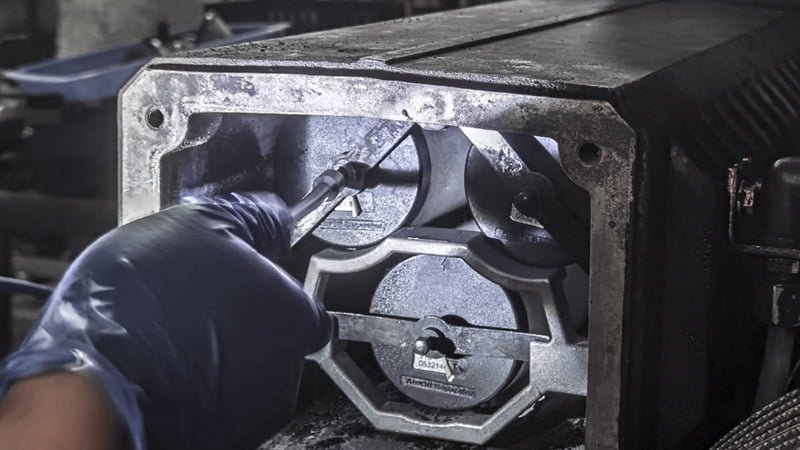

Exhaust Filters: Safeguarding Air Quality

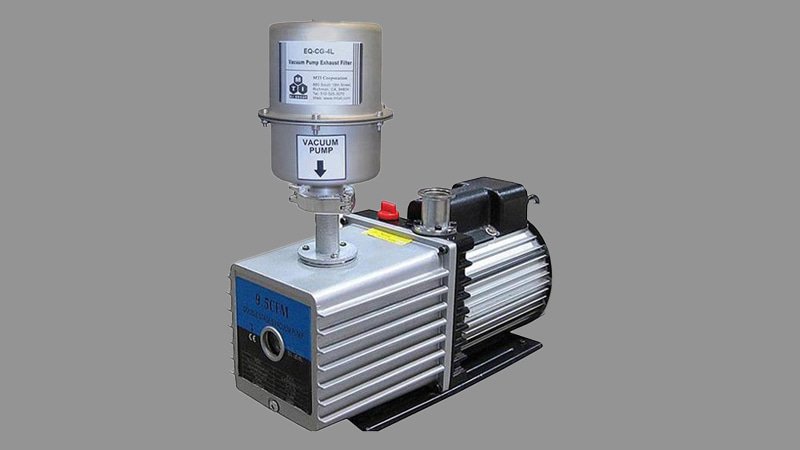

Oil Mist Eliminators: Beyond Compliance
Health Risks: Oil mist particles <1µm penetrate lungs, linked to respiratory diseases. Filters reduce workplace exposure by 95%.
Design Choices:
Fiberglass Filters: Budget-friendly but degrade above 120°C. Replace every 6 months.
Stainless Steel Mesh: Withstands 400°C (ideal for hot processes like vacuum degassing) – clean monthly with solvents.
Regulatory Edge: Meets OSHA 29 CFR 1910.1000 and EU Directive 2019/1833 for airborne particulates.

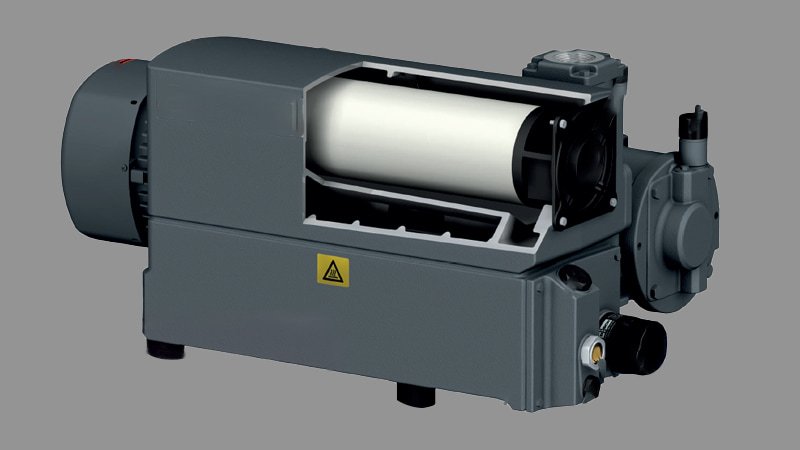

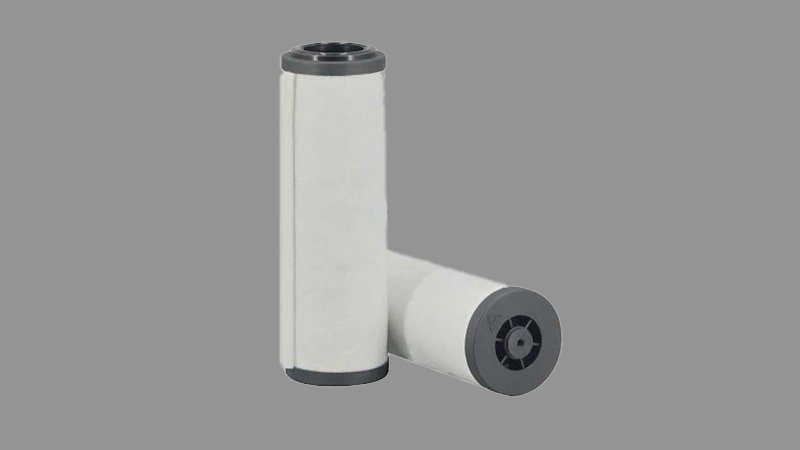

Vacuum exhaust filters, or oil mist eliminators, are commonly used in oil-sealed rotary vane vacuum pumps. These filters are designed to capture oil mist produced during the pump’s operation, ensuring clean exhaust and preventing oil contamination of the surrounding environment.
Multi-Stage Systems: When Single Filters Aren’t Enough
Example Setup for Semiconductor Fabs:
Stage 1: Stainless steel oil mist eliminator (catches 99% of 0.3µm droplets).
Stage 2: HEPA filter (removes 99.97% of particles >0.3µm).
Stage 3: Activated carbon bed (adsorbs VOCs like IPA and HF).
Result: Extends pump oil life by 3x and reduces cleanroom contamination alerts by 70%.
For applications requiring high levels of filtration, multi-stage filtering systems are employed. These systems use multiple layers of filters to remove particles and oil mist gradually. A typical setup might include an oil mist eliminator as the first stage and a disposable charcoal trap as the second stage to capture volatile organic compounds.
The Hidden Costs of Poor Filtration
Energy Waste: Clogged filters increase pump workload, spiking energy use by 15–25%.
Oil Degradation: Unfiltered acids/particles oxidize pump oil 2x faster, costing 5k–10k annually in replacements.
Downtime: A single backflow event in a vacuum furnace can mean $50k+ in scrapped batches.
How to Choose the Right Filter: A 3-Step Checklist
Identify Contaminants:
Solids (dust, metal)? → Catchpot + Dust Trap
Oil vapor? → Foreline Trap
Solvents/chemicals? → Vapor Trap
Match Materials to Conditions:
High heat (>150°C)? → Metal mesh, stainless steel housings
Corrosive vapors? → PTFE-coated elements
Plan Maintenance:
Track filter lifespan via IoT sensors (e.g., pressure drop alerts).
Stock spare elements to avoid 48hr+ lead times.
Final Overview
Vacuum pump filters aren’t just parts – they’re insurance. Investing in the right system can slash downtime by 60%, cut oil costs by 40%, and keep your team safe.
